Bogen MB8 Series Public Address Equipment Model Overview

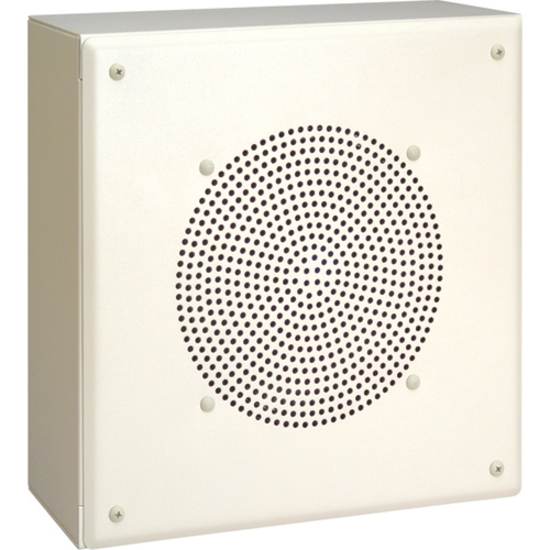

Bogen's MB8TSQ and MB8TSL speakers offer a robust solution for commercial audio needs. Engineered with a full steel surface-mounted enclosure, these speakers feature an 8" cone loudspeaker that delivers exceptional sound quality and intelligibility. The MB8TSQ can be mounted on either the ceiling or wall, while the MB8TSL is specifically designed for wall mounting with a 12.5-degree downward angle. With a versatile 4-watt maximum output and multiple transformer tap settings, these speakers are compatible with both 70V and 25V audio systems, providing flexibility for various installation requirements.
Excellent sound intelligibility with a full range 8" cone speaker
Includes mounting hardware: toggle bolts, wood screws, and wire crimps
Compatible with 25V or 70V amplifier systems
Specifications
Cone Diameter: 8" (paper)
Magnet Weight: 6 oz.
Power Rating (max.): 4 Watts
Transformer Power Taps: 4, 1/8 Watts
Constant Voltage Amp Type: 70V or 25V
Frequency Response: 110 Hz - 15 kHz
Sensitivity (1-watt @ 1 meter): 96 dBspl
Dispersion Angle: 100°
Product Weight: 9 lb.
Enclosure Size MB8TSQ: 11-5/8" W X 11-5/8" H X 4-1/4" D
Enclosure Size MB8TSL:
Top: 11-5/8" W X 11-3/8" H X 5-3/8" D
Bottom: 11-5/8" W X 11-3/8" H X 3-1/8" D
Bogen MB8TSQ Public Address Equipment Overview

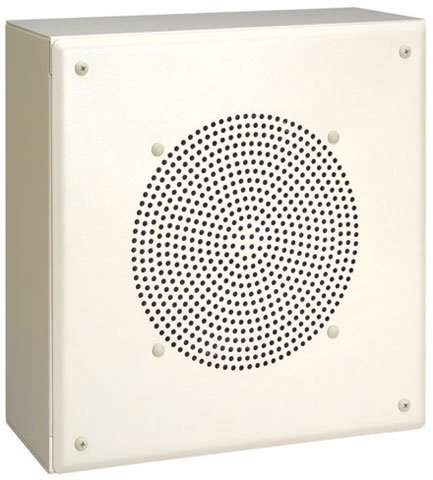

Bogen's MB8TSL speaker feature an all-steel surface-mounted enclosure with an 8" cone loudspeaker and multi-tap 4-watt 70V/25V transformer. The MB8TSQ speakers are suitable for ceiling or wall mounting.
The Bogen MB8TSQ Public Address Equipment is also known as
BOG-MB8TSQ
