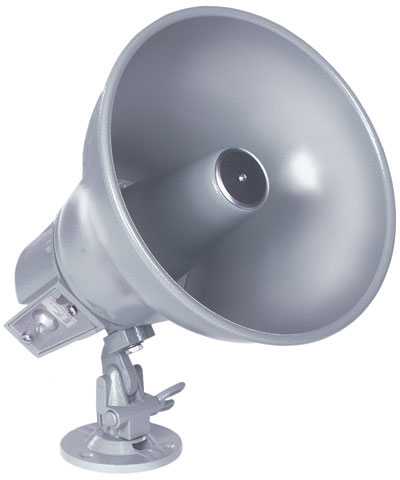

Bogen LU15W70VH Public Address Equipment

The AVAYA LU15W70VH-15W Horn Loudspeaker is engineered for exceptional audio performance, making it the ideal choice for various environments, from retail stores to outdoor events. With a power rating of 15 watts continuous and a frequency response range of 275 Hz to 14 kHz, this loudspeaker delivers clear and powerful sound. Its robust design ensures high sound pressure levels, achieving up to 121 dB at four feet on axis with a 15-watt input. The impedance options of 25/70 volts provide flexible integration into different systems, making it a versatile solution for your audio needs.
Key features:

• Powerful Output: 15 watts continuous, 20 watts equalized for robust audio performance.
• Wide Frequency Range: Covers 275 Hz to 14 kHz for clear sound reproduction.
• High Sound Pressure Level: Achieves up to 121 dB @ 1000 Hz for impressive loudness.
• Flexible Impedance Settings: Adjustable settings for 25V and 70V systems.
• Compact Design: Dimensions of 9" dia. x 9-1/4"D ensure easy installation.

Specifications:

• Power Rating (RMS): 15 watts continuous, 20 watts equalized
• Frequency Response: 275 Hz to 14 kHz
• Impedance: 25/70 volts
• Sound Pressure Level: 121 dB @ four feet on axis with 15 watt input @ 1000 Hz
• Dispersion: 110º
• Sensitivity as Microphone: -22 dBm [Ref: 10 dynes/cm2]
• Dimensions: 9" dia. x 9-1/4"D
• Shipping Weight: 4-1/2 lb.
• Impedance Selector Switch Settings:
  • 25V @ 15, 7.5, 1.8, .94, .46 watts
  • 70V @ 15, 3.8, .9 watts
