Full specifications (PDF)
Total Harmonic Distortion (THD):
2%
Bogen GA2 Public Address Equipment
Part Number:
GA2
Model:
GA2
Bogen GA2 Public Address Equipment Model Overview

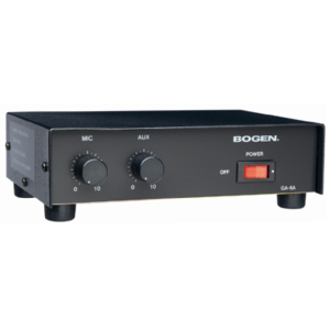

Bogen Model GA2 and GA6A amplifiers are robust solutions for your low-power audio needs. The GA2, a compact 1.5-watt amplifier, is perfect for telephone line “music-on-hold” systems and effortlessly drives monitor speakers or headphones. The GA6A offers six watts of power, featuring dual-input capabilities for versatile uses, such as background music in commercial spaces or sound reinforcement in small venues. Both models provide adjustable tone controls and exceptional audio performance, ensuring clarity and minimal distortion across a range of frequencies.
Key features:
Specifications:
Key features:
- GA2 Power Output: 1.5 watts RMS and 600-ohm telephone line compatibility.
- GA6A Power Output: 6 watts RMS, perfect for background music and sound reinforcement.
- Compact Design: GA2 dimensions of 5-1/2"W x 4-1/8"H x 2-1/4"D and GA6A at 8-1/2"W x 2-5/8"H x 6"D for easy mounting.
- Inputs: Lo-Z balanced/unbalanced MIC, and AUX inputs with built-in mixing.
- Durable Construction: Made from zinc-plated galvanized steel.
Specifications:
- GA2:
- Power Output: 1.5 watts RMS
- Frequency Response: 200Hz to 15kHz (+0dB, -2.5dB)
- Total Harmonic Distortion: 2% @ 1.5W
- Output Level: +6dBm (1.5V) across balanced 600 ohms
- Sensitivity: 50mV
- Input Impedance: 100 kilohms
- Hum and Noise: -72dB below rated output
- Dimensions: 5-1/2"W x 4-1/8"H x 2-1/4"D
- Shipping Weight: 2 lbs.
- GA6A:
- Power Output: 6 watts RMS
- Frequency Response: 30Hz to 12kHz (+0dB, -3dB)
- Total Harmonic Distortion: 1% @ rated output
- Inputs: Low-Z MIC and AUX with mixing
- Sensitivity: MIC 0.3mV; AUX 0.2V
- Hum and Noise: -50dB for MIC; -64dB for AUX
- Dimensions: 8-1/2"W x 2-5/8"H x 6"D
- Shipping Weight: 5 lbs.
Bogen GA2 Public Address Equipment Overview

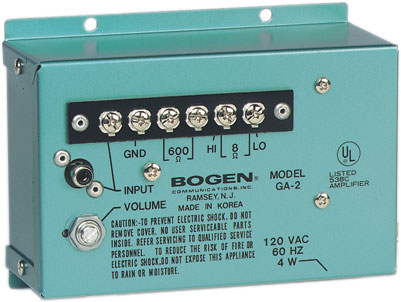

Bogen Model GA2 is a rugged, compact 1.5-watt amplifier designed to meet the requirements of continuous low-power audio applications. It is ideally suited for telephone line "music-on-hold" amplification. It can also be used to drive monitor speakers, headphones, or as a line amplifier. With accessory transformer Model WMT1A connected to the input, the GA2 will provide amplification for a 600-ohm telephone line.
Technical Information
Audio
RMS Output Power:
1.50 W
Interfaces/Ports
Number of Analog Audio Inputs:
1
Power Description
Input Voltage:
120 V AC
Frequency:
60 Hz
Physical Characteristics
Height:
4.1"
Width:
5.5"
Depth:
2.3"
Miscellaneous
Additional Information:
Features:
- Control: Volume, screwdriver-adjustable
- Only 50 millivolts needed for full output
- Ideal "music-on-hold"/line amplifier
Certifications & Standards:
UL
Item Numbers
GTIN:
0765368330533
UPC:
765368330533
EAN:
0765368330533
UNSPSC:
52161547
