Bogen CSD1X2 Public Address Equipment Model Overview

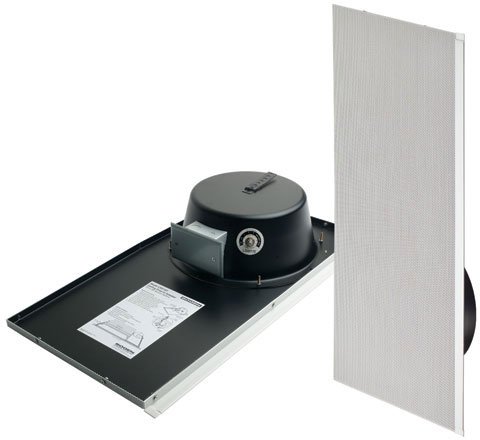

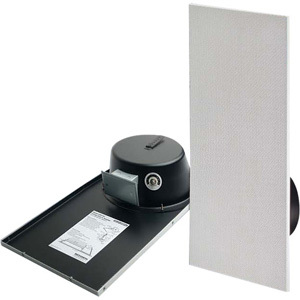

Bogen's CSD1X2 Drop-In Ceiling Speaker is the ultimate solution for high-quality sound in your commercial or residential spaces. Designed for quick and easy installation, this full-range speaker simply drops into place with just one cut to the ceiling tile. Built with a durable one-piece steel assembly, it features a finely perforated grille for an unobtrusive aesthetic. The CSD1X2 is plenum-rated and meets UL standard 2043 for safety, making it ideal for spaces where heat and smoke release is a concern. Enjoy flexibility with its adjustable 70V/25V transformer that allows you to select power taps based on your requirements. Key Features:
Fast & Easy Installation: Single cut needed for seamless drop-in fit.
Industrial Grade Construction: Fully enclosed steel assembly with a non-reflective white metal finish.
Plenum-Rated: Complies with UL standard 2043 for safety in suspended ceilings.
Adjustable Power Taps: 70V/25V transformer with various wattage settings (4, 2, 1, .5, .25 watts).
High-Quality Sound: 8" main cone paired with a secondary high frequency cone for optimized audio performance.
Specifications:
Frequency Response: 110 Hz - 20 kHz
SPL @ 1W/1M: 94 dB
Dispersion @ 2 kHz: 100°
Cone Material: Treated paper main cone with secondary high frequency cone
Magnet Weight: 10 ounces
Connection: Via wire nuts (included in electrical box)
The Bogen CSD1X2CA Public Address Equipment is also known as
BOG-CSD1X2CA
