Bogen C10 Public Address Equipment

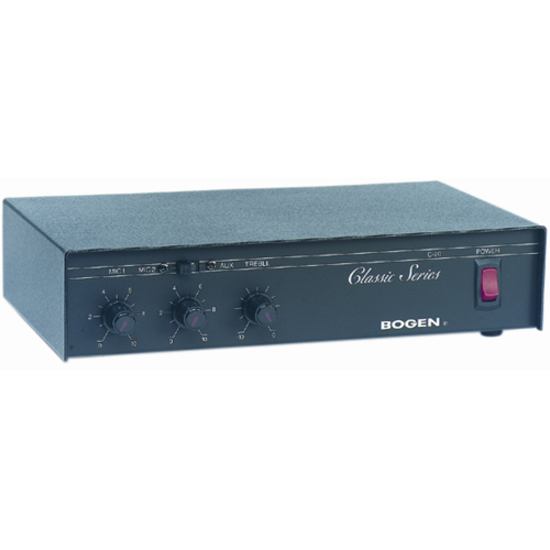

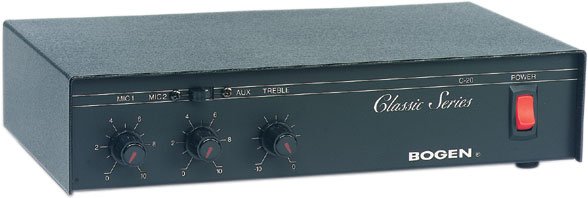

The Bogen Classic Series Models C10, C20, C10MOH, and C20MOH public address amplifiers are designed for dependable performance and versatility. Ideal for both commercial and institutional environments, these amplifiers provide a clear audio output with ratings of 10 watts for the C10 and 20 watts for the C20, ensuring superior sound quality in any setting. The MOH models include a music-on-hold feature, allowing seamless audio playback during telephone interactions, making them a perfect choice for businesses aiming to enhance customer experience.

• Power Output: C10(MOH) - 10W; C20(MOH) - 20W
• Transformer Isolated: 402, 80, 160, 25V, and 70V output taps
• Microphone Inputs: One dedicated MIC1 and switchable MIC2/AUX input
• Auxiliary Input: Rear panel receptacle with contact muting
• VOX Control: Voice activation threshold for telephone input
• Dimensions: 11-3/8" W x 2-7/8" H x 7-3/8" D

• Power Output:
• C10(MOH) - 10 WRMS
• C20(MOH) - 20 WRMS
• Distortion: Less than 1% @ RPO
• Frequency Response: 70Hz to 16kHz ±1dB
• Hum and Noise:
• MIC - 55dB below rated output
• AUX & TEL - 70dB below rated output
• Input Sensitivity:
• MIC - Lo-Z Balanced 600μV
• AUX - 85mV (10k-ohms)
• TEL - 75mV (600Ω)
• Output Connections: 4-, 8-, 16-ohm, 70V
• Power Requirements: 120V AC, 60Hz
• Shipping Weight: C10(MOH) - 5 lbs; C20(MOH) - 6 lbs

The Bogen Classic Series Models C10, C20, C10MOH, and C20MOH offer dependable performance and flexibility. The C10 and C10MOH are rated at 10 watts. The C20 and C20MOH are rated at 20 watts. All models are UL and CSA listed. The MOH models provide a music-on-hold output from the Aux input source. This output is unaffected by paging. Screw terminal connections are provided for 600Ω 1 volt and 8Ω at 1 watt. A level control is also provided on the rear panel. The Classic Series is designed with discreet complementary transistor circuitry to assure maximum reliability of power output stages.
