Full specifications (PDF)
Controllable Function:
Volume Control

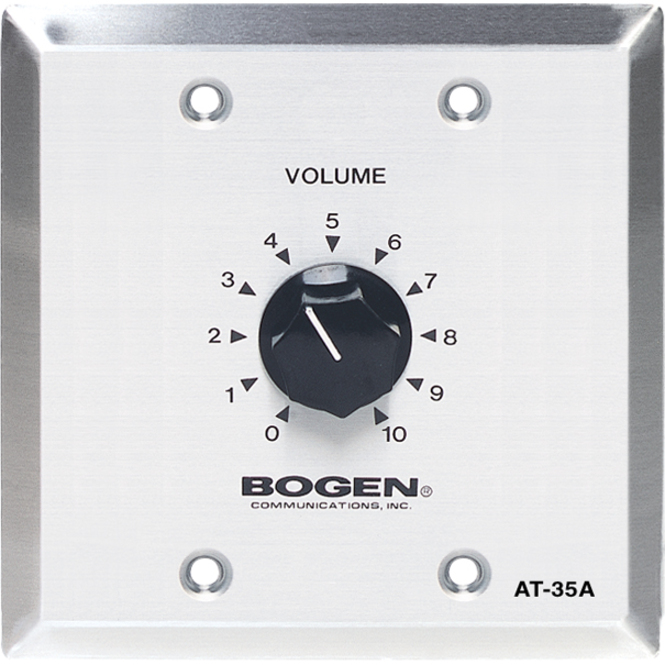

Bogen AT35A Public Address Equipment
Part Number:
AT35A
Model:
AT35A
Bogen AT35A Public Address Equipment Model Overview
Allows local control of a group of speakers, without altering amplifier volume setting
Bogen AT35A Public Address Equipment Overview
The AT-Series of attenuators allows the output level of a network of 25V or 70V speakers to be controlled from a wall-mounted volume control, without affecting overall amplifier volume settings. The AT10A can handle speaker loads of up to 10W and the AT35A can handle speaker loads of up to 35W. Volume reduction takes place in 3 dB increments except for the two lowest settings, which provide 6 dB reduction increments. These rugged attenuators have 10 levels of sound control, plus an off setting.
Technical Information
Physical Characteristics
Height:
4.8"
Width:
4.8"
Depth:
2.5"
Miscellaneous
Additional Information:
- Adjusts loudspeaker output levels on 25V and 70V systems
- 10 attenuation steps and an off setting
- Mounts in standard electrical box
- Dual gang box
Warranty
Limited Warranty:
2 Year
Item Numbers
GTIN:
0765368450095, 0818204305766, 0818240733493, 0995475983302
UPC:
765368450095, 818204305766, 818240733493, 995475983302
EAN:
0765368450095, 0818204305766, 0818240733493, 0995475983302
UNSPSC:
39122206
