Bogen AMBSQ1 Public Address Equipment

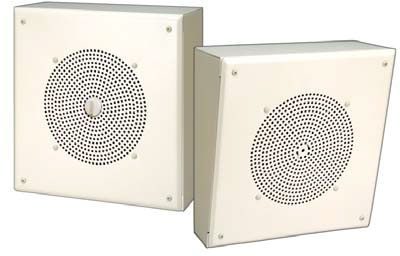

Experience unrivaled sound quality with Bogen's AMBSQ1 and AMBSL1 Self-Amplified Metal Box Speakers. These rugged all-steel speakers are designed to deliver enhanced intelligibility through their full-range 8" cone loudspeakers, making them perfect for educational or commercial environments. The integrated 1-watt amplifier ensures seamless performance while the detachable volume control knob allows for personalized adjustment at each location. Whether ceiling or wall-mounted, these speakers provide versatility and reliability, ensuring clear communication whenever you need it.

Key Features

• Robust all-steel surface-mounted enclosure for maximum durability
• Full-range 8" cone speaker for optimal audio clarity
• Self-contained 1-watt amplifier for effective sound output
• Built-in volume control with detachable knob for easy accessibility
• Compatible with standard 600-ohm telephone lines

Specifications

• Cone Diameter: 8" (paper)
• Magnet Weight: 6 oz.
• Power Rating (max.): 1W
• Typical Operational Current: 1 CU (50 mA)
• Supply Voltage: 24V DC
• Frequency Response: 110 Hz to 15 kHz
• Input Impedance: 2000 ohms
• Typical Input Sensitivity: 125 mV
• Maximum Sound Pressure Level: 92 dB @ 1 Meter on axis, 1W output
• Dispersion (min.): 100°
• Product Weight: 9 lb.
• Enclosure Size: AMBSQ1 - 11-5/8" W X 11-5/8" H X 4-1/4" D; AMBSL1 - Top: 11-5/8" W X 11-3/8" H X 5-3/8" D; Bottom: 11-5/8" W X 11-3/8" H X 3-1/8" D
• Construction: Painted steel enclosure

Bogen's AMBSQ1 Self-Amplified Metal Box Speaker feature an all-steel surface-mounted enclosure with an 8" cone loudspeaker, built-in 1W amplifier, and volume control. The AMBSQ1 is suitable for ceiling or wall mounting.
