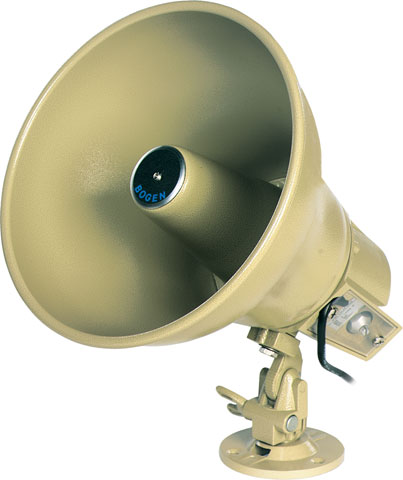

Bogen AH15A Public Address Equipment

Part Number: AH15A
Model: AH15A
Add to My Shopping List Add to Compare
$134.89

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Built-in Amplifier
Yes
Amplifier Power Output
15 W
Power Source
Battery
Input Voltage
24 V DC

Product Description:

  Bogen AH15A Magaphone - 15 W Amplifier - Built-in Amplifier
Explore all Bogen AH15A Public Address Equipments
Add to Quote
Bogen AH15A Public Address Equipment
Bogen AH15A Public Address Equipment
Bogen AH15A Public Address Equipment Bogen AH15A Public Address Equipment
Full specifications (PDF)

Bogen AH15A Public Address Equipment Model Overview

The Bogen AH5A and AH15A Amplified Horn Speakers are designed for reliable and powerful performance in diverse environments. Constructed from robust, weatherproof all-aluminum, these self-contained loudspeakers feature adjustable volume controls and are ideal for use in industrial plants, schools, and construction sites. Easy to install with universal mounting brackets and quick connections, these models ensure clarity in communication with minimum effort. Choose between 5W (AH5A) and 15W (AH15A) to meet your specific sound output needs.
Key Features:
  • 5- and 15-watt models with built-in amplifiers
  • Screwdriver-adjustable volume controls
  • Universal tilt-and-swivel mount
  • Weatherproof, all-aluminum housing
  • 4-conductor, color-coded cable for quick connections
  • Self-aligning, field-replaceable diaphragm

Specifications:
  • AH5A:
    • Maximum Output Power (RMS): 5W
    • Typical Operating Current: 300mA
    • Frequency Response: 275 Hz to 14 kHz
    • Sensitivity @ 4' (1 kHz): 116 dB
    • Dimensions: 9" Diameter x 9-1/4" D
    • Product Weight: 4 lb.
  • AH15A:
    • Maximum Output Power (RMS): 15W
    • Typical Operating Current: 900mA
    • Frequency Response: 275 Hz to 14 kHz
    • Sensitivity @ 4' (1 kHz): 121 dB
    • Dimensions: 9" Diameter x 9-1/4" D
    • Product Weight: 4 lb.
Bogen AH15A Public Address Equipment Overview

AH15A Horn Speaker Megaphone are rugged, self-contained one-way amplified paging horn assemblies with screwdriver-adjustable volume controls. Universal mounting brackets permit adjustment in vertical and horizontal planes banding slots are provided for ease in securing the horns to beams and pillars.

Full specifications (PDF)
Technical Information
Built-in Amplifier:
Yes
Amplifier Power Output:
15 W
Power Description
Power Source:
Battery
Input Voltage:
24 V DC
Physical Characteristics
Width:
9"
Depth:
9.3"
Weight (Approximate):
4 lb
Miscellaneous
Durability:
Weather Proof
Additional Information:
  • Frequency: 275 Hz to 14 KHz
  • Universal tilt and swivel mount
  • Banding slots easily secure horns to beams and pillars
  • 4-conductor color coded cable for quick connections to audio and power sources
  • Plastic cover protects volume control and provide cable strain relief
  • All-aluminum housing
  • Self-aligning field replaceable diaphragm
  • Speaker and brackets have textured mocha enamel finish
  • Mountable to l-beam flange using beam clamp
  • Mountable to electrical box using mounting strap
  • Terminal Cover allows connection of conduit fittings to horn speakers
Item Numbers
GTIN: 0818241525455, 0818279116151, 0993243197746, 0996592044501
UPC: 818241525455, 818279116151, 993243197746, 996592044501
EAN: 0818241525455, 0818279116151, 0993243197746, 0996592044501
UNSPSC: 52161533
