Bogen OCS1 Public Address Equipment
Bogen OCS1 -

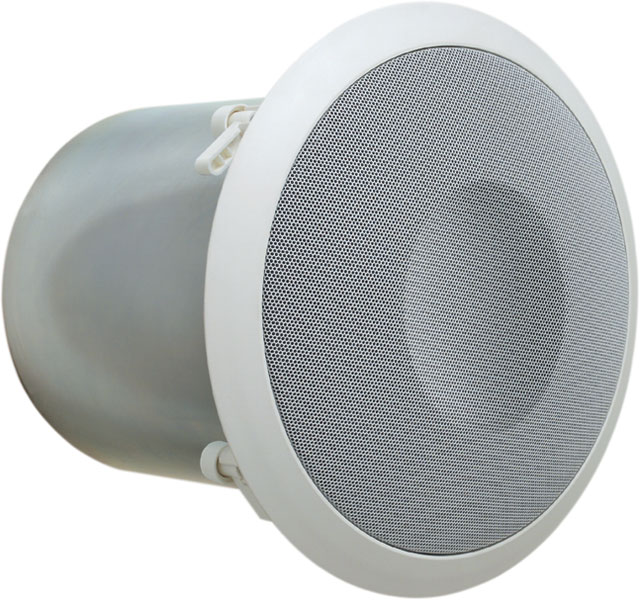

The OCS1 Speaker orbit ceiling speaker is the ideal choice for various types of ceiling environments. The OCS1 Speaker features NEAR's MLS and MDT technologies, which improve sound quality and increase operating reliability. The low-distortion speaker design, featuring NEAR's spiderless driver and one-piece metal-alloy cone structure, delivers superb articulation and the highest intelligibility for both music and speech.
Full specifications (PDF)
Price Match Guarantee
Found a better price? We'll match it within 60 days of your purchase.
for Qty Discount
Add to Quote
Starting at:
$164.84
Questions? Get help from a
Printer Expert!
Printer Expert!
Bogen OCS1 Public Address Equipment Options
-
Bogen OCS1 Public Address Equipment
Coax, 6 Inch, Alloy LF 3-4 Inch HF, 100W 70V-8-Ohm, White$164.84
Bogen OCS1 Public Address Equipment Model Overview
The N.E.A.R. Orbit Ceiling Speaker Model OCS1 is expertly designed to blend seamlessly into various ceiling environments, delivering exceptional sound quality and reliability. Featuring NEAR’s innovative MLSTM and MDT™ technologies, this ceiling speaker ensures low distortion and outstanding articulation, making it ideal for both music and speech applications. Its robust design allows for easy installation on hard-surface ceilings or suspended ceilings with an optional TBCR bracket, making it a versatile option for various settings.
Key features:
- Wide-dispersion coaxial driver for broad, even coverage.
- High-efficiency drivers delivering superior performance.
- Easy wiring with snap-on connector providing loop-through capability.
- Selectable power taps via front-mounted control for versatile usage.
- Durable construction with a low-resonance cabinet structure.
- White textured finish can be painted to match decor themes.
Specifications:
- Frequency Response: 60 Hz to 19 kHz
- LF Driver: 6-1/2" MDT Metal-Alloy Cone
- HF Driver: 20 mm (3/4") Polycarbonate Dome
- Sensitivity: 89.5 dBspl (Average 100 Hz - 10 kHz)
- Impedance Ratings: Low (16 ohms) / High (70V/100V)
- Power Input (Max.): 100W @ 16 ohms; 32W @ 70V/100V
- Baffle Material: Fire-rated (94VO) ABS
- Product Weight: 10 lb.
- Speaker Dimensions: 12-5/16" dia. x 12" D
- Included Accessories: Input Terminal Cover, Screws, Snap-Lock Input Connector
- Optional Accessories: Tile Bridge Support Ring (Model TBCR), Cable Kit (Model CK10)
