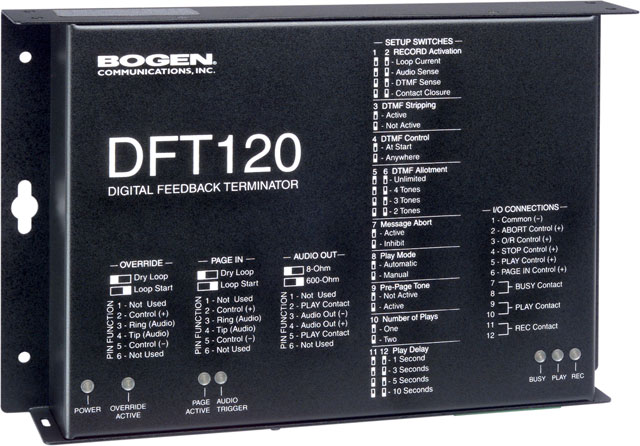

Bogen DFT120 Public Address Equipment
Bogen DFT120 -
The Bogen DFT120 Digital Feedback Terminator provides high quality recording and playback of audio pages. The DFT120 breaks the acoustical feedback loop created by the telephone handset and paging speaker. The page is first recorded and then played back as soon as the source handset has been put on-hook.
Full specifications (PDF)
Price Match Guarantee
Found a better price? We'll match it within 60 days of your purchase.
for Qty Discount
Add to Quote
Starting at:
$1,101.60
Questions? Get help from a
Printer Expert!
Printer Expert!
Bogen DFT120 Public Address Equipment Options
-
Bogen DFT120 Public Address Equipment
Bogen DFT120 Digital Feedback Terminator - 10" Width x 6.5" Depth x 1.5" Height$1,101.60
Bogen DFT120 Public Address Equipment Model Overview
The Bogen DFT120 Digital Feedback Terminator is an essential solution for clear audio communication. With 120 seconds of recording capacity and the ability to capture multiple messages simultaneously, it effectively eliminates the acoustic feedback loop between telephone handsets and paging systems. Ideal for high-capacity paging, this versatile unit supports dry loop or loop start inputs, making it compatible with a wide range of equipment. The DFT120 enhances playback quality through a high sampling rate and offers flexible operational modes, ensuring seamless and dynamic audio management.
Key Features
Specifications
Key Features
- 120 Seconds of total audio memory.
- Record while playing back other messages.
- Stack up to 8 messages for playback.
- Loop start or dry loop input modes.
- High sampling rate for excellent audio quality.
- Adjustable delay before message repetition.
- Pre-page tone feature.
- Automatic or externally controlled operation.
Specifications
- Audio Memory Capacity: 120 Seconds
- Maximum Message Length: 30 Seconds
- Message Stacking Capacity: 8 Messages
- Frequency Response: 100Hz to 6.8KHz +/-3dB
- Distortion: < 1.0% (THD max.)
- Signal-to-Noise Ratio: 60 dBr
- Audio Input: Loop start trunk or 4-wire dry loop
- Audio Output: 8 ohms / 0.125W or 600 ohms / +4dBm
- Power Consumption: 24VDC, 1A
- Dimensions: 10"W x 1.5"H x 6.5"D
- Shipping Weight: 6 lbs.
