Bogen CSD1X2 Public Address Equipment
Bogen CSD1X2 -

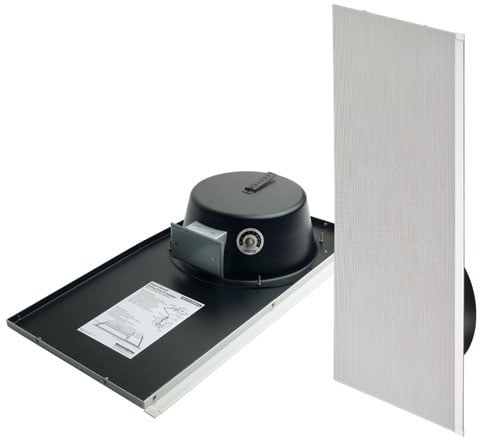

Bogen's CSD1X2 Ceiling Speaker drop-in ceiling speaker with one-piece assembly saves installation time, effort and cost. The CSD1X2 Ceiling Speaker features an 8" main cone with secondary high-frequency cone and frequency response of 110 Hz - 20 kHz. A 70V/25V 4 watt transformer & rotary switch offer 4, 2, 1, .5, .25 watt taps. A perforated grille covers the entire speaker front. Integral tile support rail and seismic attachment point.
Full specifications (PDF)
Price Match Guarantee
Found a better price? We'll match it within 60 days of your purchase.
for Qty Discount
Add to Quote
Starting at:
$125.28
Questions? Get help from a
Printer Expert!
Printer Expert!
Bogen CSD1X2 Public Address Equipment Options
-
Bogen CSD1X2UCA Public Address Equipment
CSD1X2 Drop-In Ceiling Tile Speaker (with Bright White Grille - Ships 2 per Box)$125.28 -
Bogen CSD1X2CA Public Address Equipment
8" cone speaker, 70V/25V, 4-watt transformer taps, 110 Hz - 20 kHz, Seismic attachment point, Finely perforated grille, Industrial grade steel construction$203.66 -
Bogen CSD1X2VRCA Public Address Equipment
CSD1X2 Drop-In Ceiling Tile Speaker (Panel with VR - Ships 2 per Box)$235.43 -
Bogen CSD1X2VRUCA Public Address Equipment
CSD1X2 Drop-In Ceiling Tile Speaker (1 x 2 Panel with VR Ultra WHT - 2 per Carton)$235.43
Bogen CSD1X2 Public Address Equipment Model Overview
Bogen's CSD1X2 Drop-In Ceiling Speaker is the ultimate solution for high-quality sound in your commercial or residential spaces. Designed for quick and easy installation, this full-range speaker simply drops into place with just one cut to the ceiling tile. Built with a durable one-piece steel assembly, it features a finely perforated grille for an unobtrusive aesthetic. The CSD1X2 is plenum-rated and meets UL standard 2043 for safety, making it ideal for spaces where heat and smoke release is a concern. Enjoy flexibility with its adjustable 70V/25V transformer that allows you to select power taps based on your requirements.
Key Features:
Specifications:
Key Features:
- Fast & Easy Installation: Single cut needed for seamless drop-in fit.
- Industrial Grade Construction: Fully enclosed steel assembly with a non-reflective white metal finish.
- Plenum-Rated: Complies with UL standard 2043 for safety in suspended ceilings.
- Adjustable Power Taps: 70V/25V transformer with various wattage settings (4, 2, 1, .5, .25 watts).
- High-Quality Sound: 8" main cone paired with a secondary high frequency cone for optimized audio performance.
Specifications:
- Frequency Response: 110 Hz - 20 kHz
- SPL @ 1W/1M: 94 dB
- Dispersion @ 2 kHz: 100°
- Cone Material: Treated paper main cone with secondary high frequency cone
- Magnet Weight: 10 ounces
- Connection: Via wire nuts (included in electrical box)
- Dimensions: 12-7/8" W x 4-3/4" H x 23-3/4" D
- Weight: 10 lb.
