Bogen CS1EZ Public Address Equipment
Bogen CS1EZ -

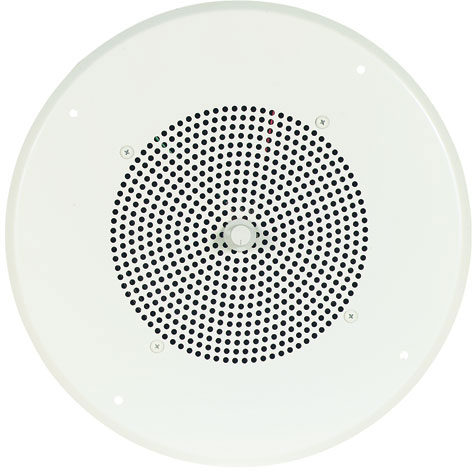

The Bogen CS1EZ Ceiling Speaker is a pre-assembled 1-watt single-tap ceiling speaker designed for use with 70V amplifier systems. Comprised of an 8" cone speaker and 13" diameter steel ceiling grille, the CS1EZ Ceiling Speaker includes a rear-mounted screw terminal board for fast, easy installation. An accessible volume control knob is located on the faceplate. White enameled grille.
Full specifications (PDF)
Price Match Guarantee
Found a better price? We'll match it within 60 days of your purchase.
for Qty Discount
Add to Quote
Starting at:
$42.24
Questions? Get help from a
Printer Expert!
Printer Expert!
Bogen CS1EZ Public Address Equipment Options
-
Bogen CS1EZ Public Address Equipment
Bogen CS1EZ Speaker - 1 W RMS - White - 4.9 Kilo Ohm$42.24
Bogen CS1EZ Public Address Equipment Model Overview
The Bogen Easy Design® CS1EZ Ceiling Speaker combines impeccable audio quality with user-friendly installation features. Engineered for 70V amplifier systems, this pre-assembled 1-watt speaker delivers crisp sound through its robust 8" cone speaker, all housed within a sleek 13" diameter steel grille finished in semi-gloss white enamel. The convenient rear-mounted screw terminal connections allow for rapid setup, while the integrated volume control knob on the faceplate ensures effortless sound adjustments. Whether for professional or home audio applications, the CS1EZ is designed for efficiency and superior performance.
Key Features
Specifications
Key Features
- 1W single-tap design for simplicity and efficiency
- Screw terminal connections for quick and easy installation
- Compatible with 70V amplifier outputs for versatile use
- 8" cone speaker for excellent audio quality
- Heavy-duty, wire-wound volume control knob for easy sound management
- Pre-assembled for faster installation
- Tile bridge (Model TB8) available (sold separately) to support the speaker weight
Specifications
- Power Rating (RMS): 1 watt continuous
- Frequency Response: 50 Hz to 12 kHz
- Impedance: 4900 ohms (for use on 70V amplifier outputs)
- Sound Pressure Level: 95 dB @ 4 ft. with a 1-watt input on axis
- Dimensions: 13" Dia. X 3-1/4" D
- Product Weight: 3 lb.
- Finish: Semi-gloss white enamel
