Bogen BDT30A Public Address Equipment
Bogen BDT30A -
The BDT30A is a compact loudspeaker designed for one- or two-way sound and communication systems. Ideal for use in industrial plants, warehouses, schools, construction sites, transportation terminals, and recreational areas.
Full specifications (PDF)
Price Match Guarantee
Found a better price? We'll match it within 60 days of your purchase.
for Qty Discount
Add to Quote
Starting at:
$202.00
Questions? Get help from a
Printer Expert!
Printer Expert!
Bogen BDT30A Public Address Equipment Options
-
Bogen BDT30A Public Address Equipment
Bogen BDT30A -Bi-Directional Reentrant Horn Loudspeaker - 30W Amplifier$202.00
Bogen BDT30A Public Address Equipment Model Overview

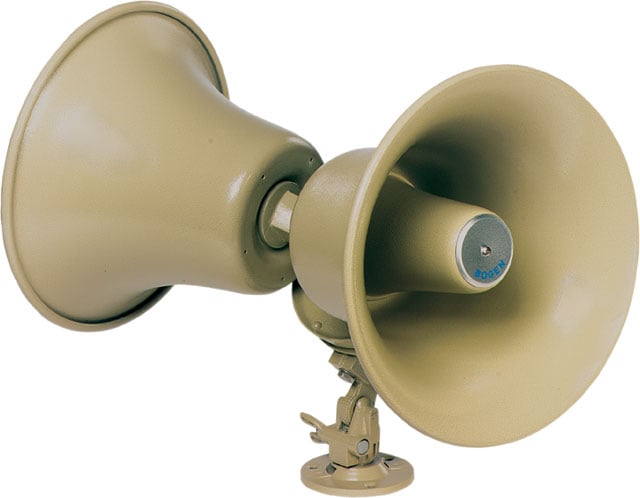

The Bogen BDT30A Bi-Directional Reentrant Horn Loudspeaker is a versatile and compact sound solution ideal for various environments such as industrial plants, warehouses, schools, and construction sites. Designed for optimal performance, this weatherproof loudspeaker delivers high intelligibility and efficiency, making it suitable for one-way paging and talkback applications. Its robust all-metal construction ensures durability, while the self-aligning and field-replaceable diaphragm simplifies maintenance and enhances longevity. Easy installation is facilitated by screw terminals and a uniquely designed mounting bracket.
Key features:
Specifications:
Key features:
- Twin reentrant horns for bi-directional sound projection
- High intelligibility and efficiency
- Weatherproof design for indoor and outdoor use
- 30 watts at 70V or 15 watts at 25V operation
- Rotary tap impedance selector switch for easy configuration
- Quick installation with screw terminals
- Tool-free maintenance with a field-replaceable diaphragm
Specifications:
- Power Rating (RMS): 30 watts continuous; 40 watts equalized
- Frequency Response: 225Hz to 14kHz
- Impedance: 25/70 volts
- Sound Pressure Level: 121 dB @ four feet on axis with 30 watt input @1000Hz, each horn
- Dispersion: 100° each horn
- Sensitivity as Microphone: -22dBm [Ref: 10 dynes/cm2]
- Dimensions: 9-5/8" dia. (each horn) x 12-1/8" D
- Shipping Weight: 8 lb. (3.6kg)
- Finish: Textured mocha enamel
- Impedance Selector Switch Settings: 25V @ 15, 7.5, 3.7, 1.8 watts; 70V @ 30, 15, 1.8 watts
