Bogen ASM1 Public Address Equipment
Bogen ASM1 -

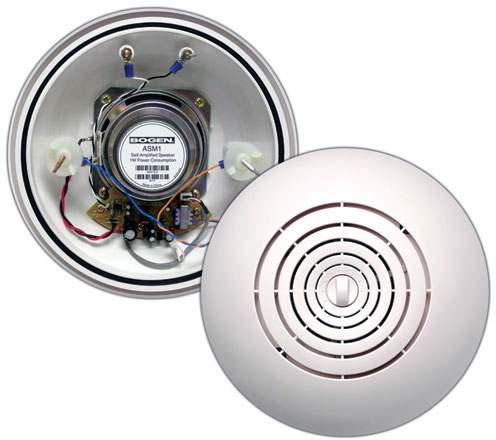

The Bogen ASM1 Amplified Speaker is a surface-mount speaker, designed to typically install in less than a minute. Installation is a simple, three-step process that does not require tools. First, four specially-designed studs pierce the ceiling tile. Second, two custom designed wing nuts secure the speaker to the ceiling. Third, standard wire nuts make the 24V DC power and audio connections directly to the color coded studs. The ASM1 Amplified Speaker is lightweight, durable, and features a lowprofile contemporary design, making it versatile enough to be installed in just about any installation with standard ceiling tiles
Full specifications (PDF)
Price Match Guarantee
Found a better price? We'll match it within 60 days of your purchase.
for Qty Discount
Add to Quote
Starting at:
$61.78
Questions? Get help from a
Printer Expert!
Printer Expert!
Bogen ASM1 Public Address Equipment Options
-
Bogen ASM1 Public Address Equipment
Mount Ceiling Speaker (Self Amp)$61.78
Bogen ASM1 Public Address Equipment Model Overview
The Bogen ASM1 Easy Install® Self-Amplified Speaker offers a simple yet effective solution for clear sound in any space. Installation is a breeze with a tool-less setup designed to fit standard ceiling tiles in under a minute. The durable, low-profile design seamlessly integrates into any decor while providing high intelligibility and a wide dispersion angle. With a built-in 1-watt amplifier and easily accessible volume control, the ASM1 ensures high-quality audio for presentations, announcements, or background music without drawing attention to itself.
Key Features
- Self-amplified 1W speaker for clear audio.
- Tool-less installation in less than a minute.
- Contemporary low-profile design blends with any environment.
- Front-mounted volume control for easy adjustments.
- Color-coded mounting studs simplify connections.
- Wide dispersion angle for uniform sound distribution.
- Dural plastic construction with a paintable finish.
Specifications
- Power Rating (Max): 1W
- Frequency Response: 125 Hz - 15 kHz
- Sensitivity: 90 dBspl, 1W @ 1M on axis
- Supply Voltage Range: 24V DC
- Idle Current: 5 mA nominal
- Input Impedance: 2k ohms
- Dispersion Angle: 120°
- Dimensions: 9-1/2" diameter x 3" depth
- Weight: 2 lb.
