AudioCodes M600/8B Data Networking

Part Number: M600/8B
Model: Mediant 600
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Serial Port
No
PoE (RJ-45) Port
No
USB
No
Management Port
No

Product Description:

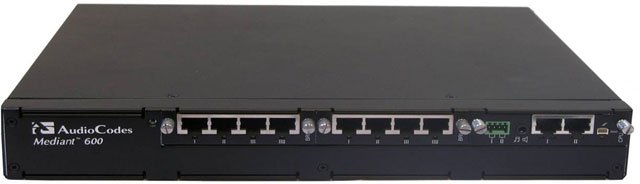

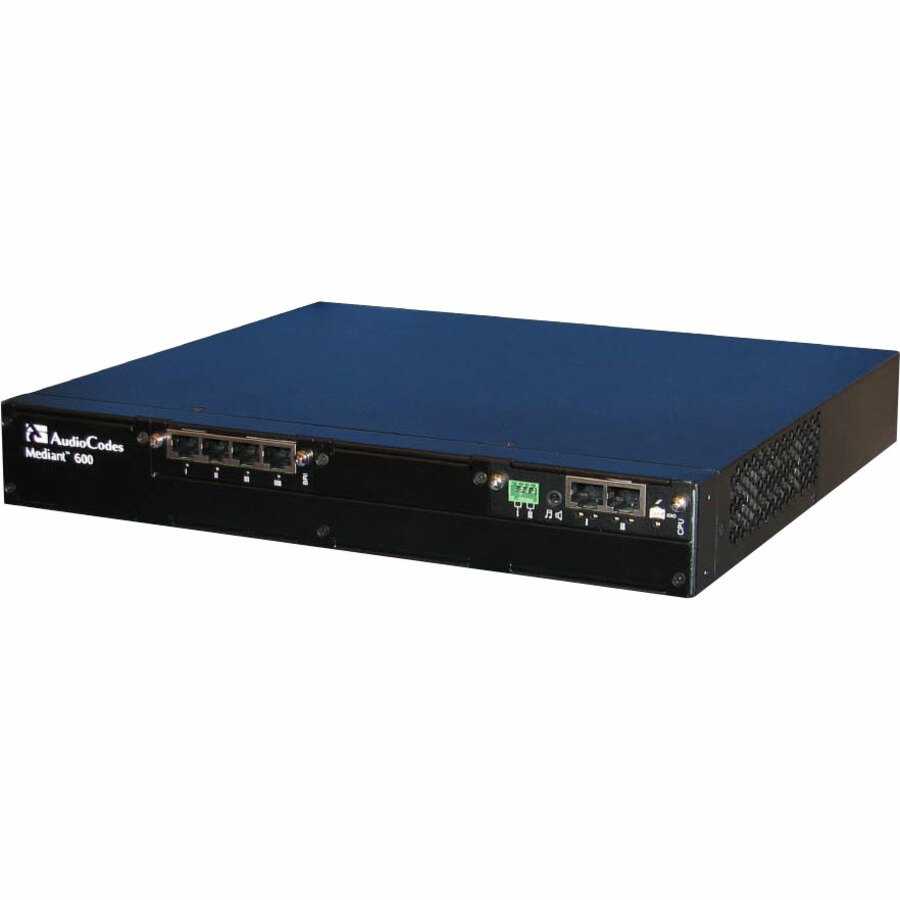

  AudioCodes Mediant 600 VoIP Media Gateway - 2 x RJ-45 - Fast Ethernet - VDSL2 - 1U High
Explore all AudioCodes Mediant 600 Data Networkings
Add to Quote
AudioCodes M600/8B Data Networking
AudioCodes M600/8B Data Networking
AudioCodes M600/8B Data Networking AudioCodes M600/8B Data Networking
Full specifications (PDF)

AudioCodes Mediant 600 Data Networking Model Overview

The Mediant 600 is AudioCodes cost-effective, wireline VoIP media gateway. The Mediant 600 is designed to interface between TDM & IP networks in enterprises, matching the density requirements for small locations. Incorporating AudioCodes' innovative Voice over IP technology, the Mediant 600 enables rapid time-to-market and reliable cost-effective deployment of next-generation networks.
AudioCodes M600/8B Data Networking Overview

The Mediant 600 is based on VoIPerfectTM, AudioCodes underlying, best-of-breed, media gateway core technology, providing superior voice technology for smooth connectivity of legacy telephones and PBX systems to IP networks and IP-PBX systems to the PSTN. The Mediant 600 is fully interoperable with IP-PBXs, IP Centrex application servers, Softswitches, gateways, IP Phones, and Session Border Controllers. The Mediant 600 Gateway supports 1 or 2 E1/T1/J1 spans, 4 to 8 BRI ports, or 4 FXS analog ports.

Full specifications (PDF)
Interfaces/Ports
Serial Port:
No
PoE (RJ-45) Port:
No
USB:
No
Management Port:
No
Number of Network (RJ-45) Ports:
2
Media & Performance
Broadband Transmission Technology:
VDSL2
I/O Expansions
SIM Card Supported:
No
Network & Communication
Carrier Supported:
  • T-carrier
  • ISDN
  • E-carrier
Ethernet Technology:
Fast Ethernet
Network Standard:
10/100Base-TX
Wireless Specifications
Wireless LAN:
No
Management & Protocols
Voice Codec:
  • GSM
  • iLBC
  • T.38
  • G.711
  • G.726
  • G.723.1
  • G.729a
  • G.165
  • G.168
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Power Source:
Power Supply
Redundant Power Supply Supported:
No
Physical Characteristics
Form Factor:
Rack-mountable
Compatible Rack Unit:
1U
Miscellaneous
Certifications & Standards:
  • ETS 300019-2-1 Storage T1.2

Telecommunication:

  • TIA/EIA-IS-968
  • TBR-4
  • TBR-13
  • TBR-21

Safety and EMC :

  • UL60950-1
  • FCC 47 CFR part 15 Class B
  • CE Mark (EN55022: 2006, EN55024: 1998 + A1: 2001 +A2: 2003, EN6600-3-2: 2000 + A2: 2005, EN6600-3-3: 1995 + A1: 2001, EN60950-1:2001, A11: 2004)
Environmentally Friendly:
Yes
Environmental Certification:
  • RoHS
  • WEEE
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43222605
