APC SYH6K6RMT-P1 Products

Part Number: SYH6K6RMT-P1
Model: Parts
Add to My Shopping List Add to Compare
$20,469.57

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Plug/Connector Type
NEMA L6-30P 30A
Receptacle Type
NEMA L6-30P 30A
Receptacle Detail
12 x NEMA 5-20R2 x NEMA L6-20R
Number of Battery & Surge Outlets
14

Product Description:

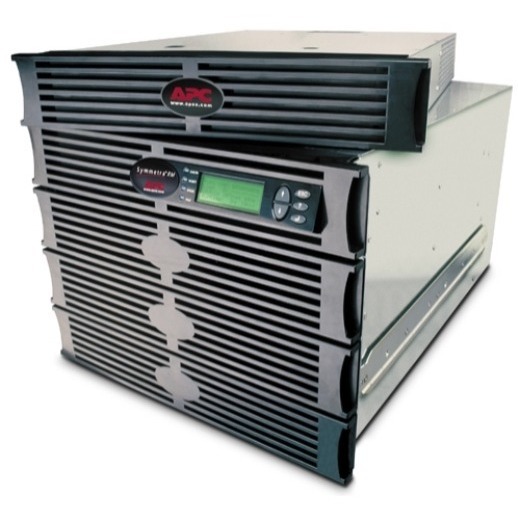

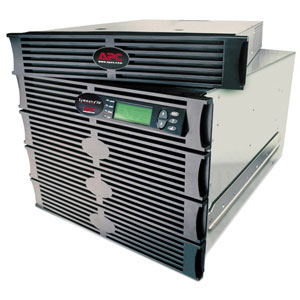

  APC Symmetra RM 6kVA UPS - 6000VA/4200W - 12.3 Minute Full Load - 12 x NEMA 5-20R, 2 x NEMA L6-20R
Explore all APC Parts Accessories
Add to Quote
APC SYH6K6RMT-P1 Products
APC SYH6K6RMT-P1 Products
APC SYH6K6RMT-P1 Products
APC SYH6K6RMT-P1 Products
APC SYH6K6RMT-P1 Products APC SYH6K6RMT-P1 Products APC SYH6K6RMT-P1 Products APC SYH6K6RMT-P1 Products

APC Parts Accessory Model Overview

Products and parts from APC.
APC SYH6K6RMT-P1 Products Overview

Highly available single phase UPS features redundant and scalable double-conversion on-line power protection

Technical Information
Plug/Connector Type:
NEMA L6-30P 30A
Receptacle Type:
NEMA L6-30P 30A
Receptacle Detail:
  • 12 x NEMA 5-20R
  • 2 x NEMA L6-20R
Number of Battery & Surge Outlets:
14
Bypass Switch:
Automatic & Manual
Emergency Power OFF:
Yes
Cord Length:
10 ft
Power Description
Load Capacity (VA):
6000 VA
Load Capacity (Watt):
4200 W
Input Voltage:
208 V
Output Voltage:
  • 120 V AC
  • 208 V AC
Waveform Type:
Sine Wave
Management
Network Management:
SNMP Manageable
Alarm:
  • On Battery
  • Low Battery
  • Configurable Delay
Battery Management:
Intelligent Battery Management
Interfaces/Ports
Serial Port:
Yes
Network (RJ-45):
Yes
Total Number of Expansion Slots:
1
Battery Information
Battery Characteristics:
Spill-proof, Maintenance-free
Battery Chemistry:
Lead Acid
Backup/Run Time (Full Load):
12.30 Minute
Backup/Run Time (Half Load):
29.10 Minute
Typical Battery Recharge Time:
3 Hour
Hot Swappable:
Yes
Environmental Conditions
Maximum Operating Temperature:
113°F (45°C)
Thermal Dissipation:
741.18 W
Physical Characteristics
Color Family:
Black
Product Color:
Black
Height:
17.5"
Width:
19"
Depth:
28.7"
Rack Height:
10U
Form Factor:
Rack-mountable
Mounting Preference:
Lower
Mounting Location:
Front
Weight (Approximate):
389.82 lb
Miscellaneous
For Country/Region:
United States
Package Contents:
  • Symmetra RM 6kVA UPS
  • CD with software
  • Rack mounting brackets
  • Rack mounting support rails
  • User manual
    • Additional Information:
    • Automatic restart of loads after UPS shutdown
    • Cold-start capable
    • Configurable for N+1 internal redundancy
    • Field-replaceable power distribution panel
    • Generator Compatible
    • Hot-swappable intelligence modules
    • Hot-swappable power modules
    • InfraStruXure Manager Compatible
    • Plug-and-Play external batteries
    • Programmable Frequency
    • Scalable Power Capacity
    • User-replaceable intelligence modules
    • User-replaceable power modules
    Certifications & Standards:
    CSA
    Product Take Back Program:
    No
    RoHS Exemption Information:
    https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SYH6K6RMT-P1_ROHS_DECLARATION&p_FileName=SYH6K6RMT-P1KIT_ROHS_DECLARATION_US.pdf
    REACH Declaration URL:
    https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=65036279&lang=en-us
    EU RoHS Declaration URL:
    https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=65036279&lang=en-us
    Environmental Profile Availability:
    https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1511005_EN
    End of Life Manual Availability:
    https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1511005_EN
    California Proposition 65 Warning:
    WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    REACH free of SVHC:
    No
    Environmentally Friendly:
    Yes
    Environmental Compliance:
    Restriction of Hazardous Substances (RoHS)
    Warranty
    Limited Warranty:
    2 Year
    Additional Warranty Information:
    2 years repair or replace, optional on-site warranties available, optional extended warranties available
    Item Numbers
    GTIN: 0683498678410, 0731304740285
    UPC: 683498678410, 731304740285
    EAN: 0683498678410, 0731304740285
    UNSPSC: 39121011
