APC SYH2K6RMT-P1 Products

Part Number: SYH2K6RMT-P1
Model: Parts
Add to My Shopping List Add to Compare
$7,117.56

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Plug/Connector Type
Hard Wire 3-wireNEMA L6-30P
Receptacle Type
NEMA L6-30P 30A
Receptacle Detail
12 x NEMA 5-20R2 x NEMA L6-20R
Number of Battery & Surge Outlets
14

Product Description:

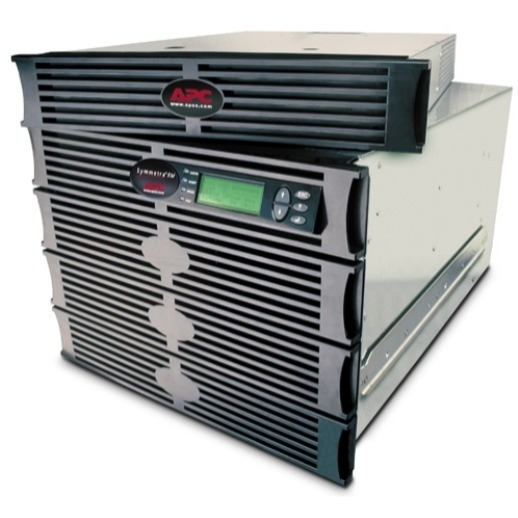

  APC Symmetra RM 2kVA Scalable to 6kVA with Step-Down Transformer - 11.9 Minute Full Load - 6kVA - SNMP Manageable
Explore all APC Parts Accessories
Add to Quote
APC SYH2K6RMT-P1 Products
APC SYH2K6RMT-P1 Products
APC SYH2K6RMT-P1 Products
APC SYH2K6RMT-P1 Products APC SYH2K6RMT-P1 Products APC SYH2K6RMT-P1 Products

APC Parts Accessory Model Overview

Products and parts from APC.
APC SYH2K6RMT-P1 Products Overview

Highly available single phase UPS features redundant and scalable double-conversion on-line power protection

Technical Information
Plug/Connector Type:
  • Hard Wire 3-wire
  • NEMA L6-30P
Receptacle Type:
NEMA L6-30P 30A
Receptacle Detail:
  • 12 x NEMA 5-20R
  • 2 x NEMA L6-20R
Number of Battery & Surge Outlets:
14
Overload Protection:
Yes
Cord Length:
10 ft
Power Description
Load Capacity (VA):
2000 VA
Input Voltage:
208 V AC
Output Voltage:
  • 120 V AC
  • 208 V AC
Input Frequency:
63 Hz
Output Frequency:
60 Hz
Waveform Type:
Sine Wave
Management
Network Management:
SNMP Manageable
Alarm:
  • On Battery
  • Low Battery
  • Configurable Delay
Bypass Switch:
Automatic & Manual
Emergency Power OFF:
Yes
Interfaces/Ports
Modular Slots:
1 x SmartSlot
Battery Information
Battery Characteristics:
Spill-proof/Maintenance-free
Battery Chemistry:
Lead Acid
Backup/Run Time (Full Load):
11.90 Minute
Backup/Run Time (Half Load):
27.70 Minute
Typical Battery Recharge Time:
4 Hour
Environmental Conditions
Maximum Operating Temperature:
104°F (40°C)
Sound Emission (A-Weighted):
60 dB(A)
Physical Characteristics
Color Family:
Black
Product Color:
Black
Form Factor:
Rack-mountable
Rack Height:
10U
Mounting Location:
Front
Mounting Preference:
Lower
Height:
17.5"
Width:
19"
Depth:
28.7"
Weight (Approximate):
259.55 lb
Miscellaneous
For Country/Region:
United States
Package Contents:
  • Symmetra RM 2kVA Scalable to 6kVA with Step-Down Transformer
  • CD with software
  • Rack mounting brackets
  • Rack mounting support rails
  • User manual
    • Additional Information:
    • Efficiency at full load: 85 %
    • Output Voltage Distortion: Less than 5% at full load
    • Crest Factor: Up to 5 : 1
    • Battery Slots Empty: 4
    • Automatic restart of loads after UPS shutdown
    • Generator compatible
    Certifications & Standards:
    CSA
    Product Take Back Program:
    No
    RoHS Exemption Information:
    https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SYH2K6RMT-P1_ROHS_DECLARATION&p_FileName=SYH2K6RMT-P1KIT_ROHS_DECLARATION_US.pdf
    REACH Declaration URL:
    https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=65036251&lang=en-us
    EU RoHS Declaration URL:
    https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=65036251&lang=en-us
    Environmental Profile Availability:
    https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1511005_EN
    End of Life Manual Availability:
    https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1511005_EN
    California Proposition 65 Warning:
    WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    REACH free of SVHC:
    No
    Country of Origin:
    Philippines
    Environmentally Friendly:
    Yes
    Warranty
    Limited Warranty:
    2 Year
    Additional Warranty Information:
    2 years repair or replace, optional on-site warranties available, optional extended warranties available
    Item Numbers
    GTIN: 0683498677673, 0731304740117
    UPC: 683498677673, 731304740117
    EAN: 0683498677673, 0731304740117
    UNSPSC: 39121011
