APC Parts Accessory Model Overview
Products and parts from APC.

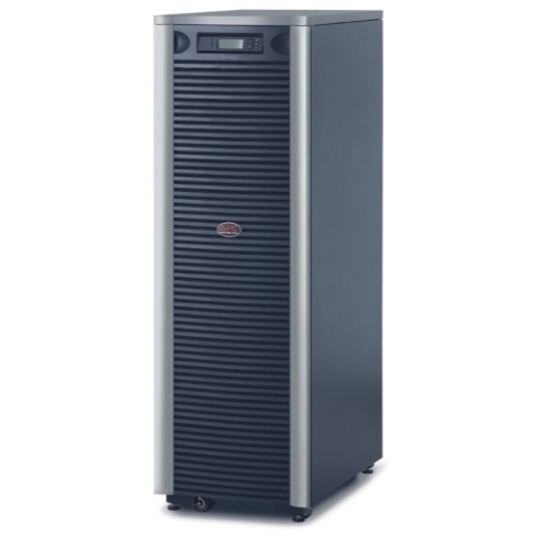

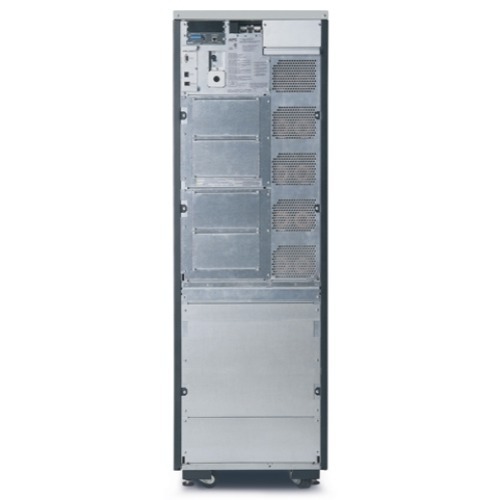

APC SYA8K16PXR Products Overview
High performance, redundant power protection with scalable power and runtime for space-constrained server rooms, and voice and data networks.
Technical Information
Plug/Connector Type:
Hard Wire 4-wire
Receptacle Type:
Hard Wire 4-wire (2PH+N+G)
Receptacle Detail:
1 x Hard Wire 4-wire (2PH+N+G)
Number of Battery & Surge Outlets:
1
Power Description
Load Capacity (VA):
8000 VA
Management
Network Management:
SNMP Manageable
Bypass Switch:
Automatic & Manual External (Optional)
Interfaces/Ports
Modular Slots:
1 x SmartSlot
Battery Information
Battery Characteristics:
Spill-proof/Maintenance-free
Battery Chemistry:
Lead Acid
Backup/Run Time (Full Load):
49.30 Minute
Backup/Run Time (Half Load):
1.77 Hour
Typical Battery Recharge Time:
7.50 Hour
Environmental Conditions
Maximum Operating Temperature:
104°F (40°C)
Thermal Dissipation:
1463.89 W
Physical Characteristics
Mounting Preference:
No Preference
Weight (Approximate):
1044.20 lb
Miscellaneous
For Country/Region:
United States
Package Contents:
Symmetra LX 8kVA Scalable to 16kVA N+1 Ext. Run Tower UPS CD with software Documentation CD Installation guide User manual Web/SNMP management card
Additional Information:
Automatic restart of loads after UPS shutdown Audible and visible alarms prioritized by severity InfraStruXure Manager Compatible Plug-and-Play external batteries Configurable for 120/208 or 120/240 output voltage
Certifications & Standards:
CSA
Optimized Energy Efficiency:
Yes
Product Take Back Program:
Yes
RoHS Exemption Information:
https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SYA8K16PXR_ROHS_DECLARATION&p_FileName=SYA8K16PXRKIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL:
https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=766170&lang=en-us
EU RoHS Declaration URL:
https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=766170&lang=en-us
California Proposition 65 Warning:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Country of Origin:
United States
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Additional Warranty Information:
2 years repair or replace
Item Numbers
GTIN:
0731304221784, 4963273153667, 4963273167190
UPC:
731304221784
EAN:
0731304221784, 4963273153667, 4963273167190
UNSPSC:
39121011
The APC SYA8K16PXR Products is also known as
APC-SYA8K16PXR
