APC SYA16K16RMP Power Device

Part Number: SYA16K16RMP
Model: Parts
$42,551.26

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Plug/Connector Type
Hard Wire 4-wire
Receptacle Type
Hard Wire 4-wire (2PH+N+G)NEMA L5-20RNEMA L14-30R
Receptacle Detail
1 x Hard Wire 4-wire (2PH+N+G)8 x NEMA L5-20R4 x NEMA L14-30R
Number of Battery & Surge Outlets
13

Product Description:

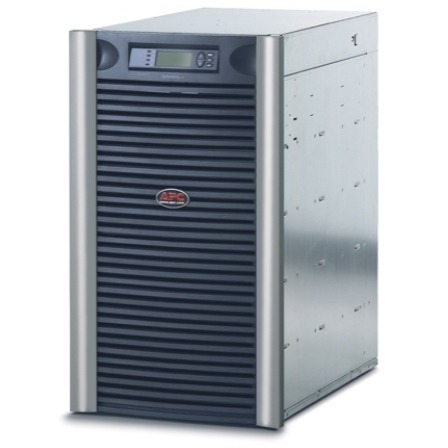

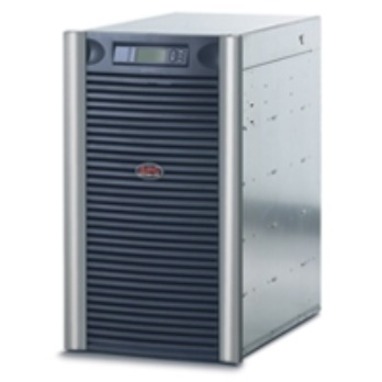

  APC Symmetra LX 16kVA Rack-Mountable UPS - 6 Minute - 16kVA - SNMP Manageable

APC Parts Accessory Model Overview

Products and parts from APC.
APC SYA16K16RMP Power Device Overview

High performance, redundant power protection with scalable power and runtime for space-constrained server rooms, and voice and data networks.

Technical Information
Plug/Connector Type:
Hard Wire 4-wire
Receptacle Type:
  • Hard Wire 4-wire (2PH+N+G)
  • NEMA L5-20R
  • NEMA L14-30R
Receptacle Detail:
  • 1 x Hard Wire 4-wire (2PH+N+G)
  • 8 x NEMA L5-20R
  • 4 x NEMA L14-30R
Number of Battery & Surge Outlets:
13
Overload Protection:
Yes
Power Description
Load Capacity (VA):
16 kVA
Input Voltage:
208 V AC
Output Voltage:
  • 120 V AC
  • 208 V AC
Input Current:
75 A
Waveform Type:
Sine Wave
Management
Network Management:
SNMP Manageable
Bypass Switch:
  • Automatic
  • External (Optional)
  • Internal
  • Manual
Emergency Power OFF:
Yes
Interfaces/Ports
Serial Port:
Yes
Modular Slots:
1 x SmartSlot
Battery Information
Battery Characteristics:
Spill-proof/Maintenance-free
Battery Chemistry:
Lead Acid
Typical Battery Recharge Time:
3 Hour
Physical Characteristics
Color Family:
Dual Color
Product Color:
  • Black
  • Silver
Form Factor:
Rack-mountable
Rack Height:
19U
Mounting Location:
Front
Mounting Preference:
Lower
Height:
32.9"
Width:
18.6"
Depth:
27.1"
Weight (Approximate):
632.33 lb
Miscellaneous
For Country/Region:
United States
Package Contents:
  • Symmetra LX 16kVA Rack-Mountable UPS
  • CD with software
  • Documentation CD
  • Installation guide
  • Rack mounting support rails
  • Temperature probe
  • User manual
  • Web/SNMP management card
  • Certifications & Standards:
    CSA
    Optimized Energy Efficiency:
    Yes
    Product Take Back Program:
    Yes
    Mercury Free:
    Yes
    RoHS Exemption Information:
    https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SYA16K16RMP_ROHS_DECLARATION&p_FileName=SYA16K16RMPKIT_ROHS_DECLARATION_US.pdf
    REACH Declaration URL:
    https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=65036067&lang=en-us
    EU RoHS Declaration URL:
    https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=65036067&lang=en-us
    California Proposition 65 Warning:
    WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    REACH free of SVHC:
    No
    WEEE Statement:
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Environmentally Friendly:
    Yes
    Environmental Compliance:
    Restriction of Hazardous Substances (RoHS)
    Warranty
    Limited Warranty:
    2 Year
    Additional Warranty Information:
    2 years repair or replace
    Item Numbers
    GTIN: 0731304733041, 0876670000752
    UPC: 731304733041, 876670000752
    EAN: 0731304733041, 0876670000752
    UNSPSC: 39121011
