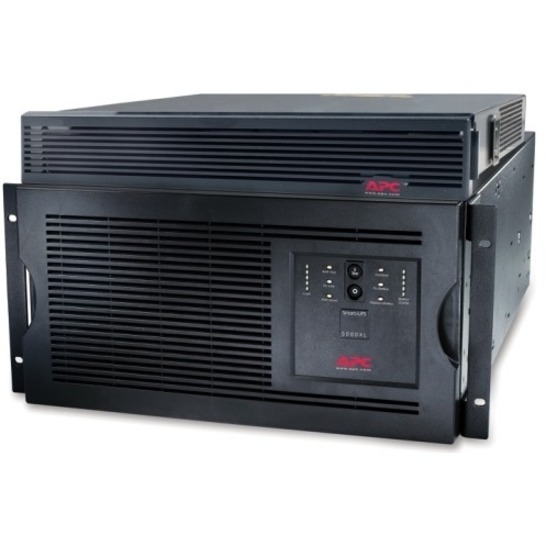

APC SUA5000R5TXFMR UPS

Part Number: SUA5000R5TXFMR
Model: Parts
Add to My Shopping List Add to Compare
$8,382.67

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Plug/Connector Type
NEMA L6-30P
Receptacle Type
NEMA L6-30P
Receptacle Detail
1 x NEMA L6-30R12 x NEMA 5-20R2 x NEMA L6-20R
Number of Battery & Surge Outlets
15

Product Description:

  APC Smart-UPS 5000VA Rack-mountable UPS - 5000VA/4000W - 9.4 Minute Full Load - 12 x NEMA 5-20R - Battery/Surge-protected, 2 x NEMA L6-20R - Battery/Surge-protected
Explore all APC Parts Accessories
Add to Quote
APC SUA5000R5TXFMR UPS
APC SUA5000R5TXFMR UPS
APC SUA5000R5TXFMR UPS
APC SUA5000R5TXFMR UPS APC SUA5000R5TXFMR UPS APC SUA5000R5TXFMR UPS

APC Parts Accessory Model Overview

Products and parts from APC.
APC SUA5000R5TXFMR UPS Overview

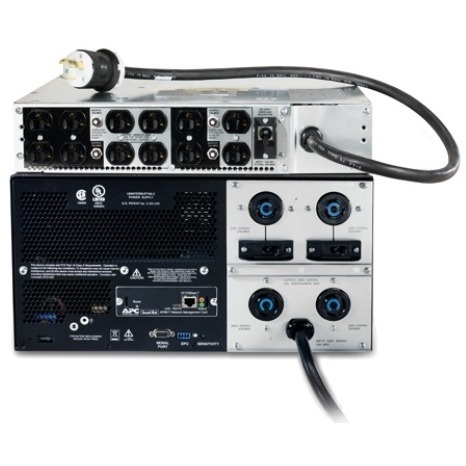

The APC Smart-UPS includes a transformer and supports 208V input and 120 and 208V output. It has a power capacity of 5000VA and 4000 watts. The UPS features multiple output connections, including 12 NEMA 5-20R, 2 NEMA L6-20R, and 1 NEMA L6-30R. It uses a lead-acid battery.

Technical Information
Plug/Connector Type:
NEMA L6-30P
Receptacle Type:
NEMA L6-30P
Receptacle Detail:
  • 1 x NEMA L6-30R
  • 12 x NEMA 5-20R
  • 2 x NEMA L6-20R
Number of Battery & Surge Outlets:
15
Dataline Protection:
RJ-45
Emergency Power OFF:
Optional
Cord Length:
8 ft
Power Description
Load Capacity (VA):
5000 VA
Load Capacity (Watt):
4000 W
Input Voltage:
208 V
Output Voltage:
  • 120 V AC
  • 208 V AC
Waveform Type:
Sine Wave
Surge Energy Rating:
1020 J
Management
Network Management:
SNMP Manageable
Interfaces/Ports
Network (RJ-45):
Yes
Total Number of Expansion Slots:
1
Battery Information
Battery Characteristics:
Spill-proof, Maintenance-free
Battery Chemistry:
Lead Acid
Backup/Run Time (Full Load):
9.40 Minute
Backup/Run Time (Half Load):
26.70 Minute
Typical Battery Recharge Time:
3 Hour
Physical Characteristics
Color Family:
Black
Product Color:
Black
Height:
12.2"
Width:
19"
Depth:
25"
Rack Height:
7U
Form Factor:
Rack-mountable
Mounting Preference:
Lower
Mounting Location:
Front
Weight (Approximate):
320.66 lb
Miscellaneous
For Country/Region:
United States
Package Contents:
  • Smart-UPS 5000VA Rack-mountable UPS
  • CD with software
  • Rack mounting support rails
  • Smart UPS signalling RS-232 cable
  • User manual
    • Certifications & Standards:
    CSA
    Software Included:
    PowerChute Management Software
    Optimized Energy Efficiency:
    Yes
    Product Take Back Program:
    No
    Mercury Free:
    Yes
    RoHS Exemption Information:
    https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SUA5000R5TXFMR_ROHS_DECLARATION&p_FileName=SUA5000R5TXFMRKIT_ROHS_DECLARATION_US.pdf
    REACH Declaration URL:
    https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=65035739&lang=en-us
    EU RoHS Declaration URL:
    https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=65035739&lang=en-us
    Environmental Profile Availability:
    https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612029_EN
    End of Life Manual Availability:
    https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612029_EN
    California Proposition 65 Warning:
    WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    REACH free of SVHC:
    No
    Country of Origin:
    India
    Environmentally Friendly:
    Yes
    Environmental Compliance:
    Restriction of Hazardous Substances (RoHS)
    Warranty
    Limited Warranty:
    2 Year
    Additional Warranty Information:
    2 years repair or replace, optional on-site warranties available, optional extended warranties available
    Directly Connected Equipment Guarantee:
    $150000 Lifetime
    Item Numbers
    GTIN: 0662712247342, 0688061885004, 0729198287924, 0731304733003, 4943783187345
    UPC: 018898491954, 662712247342, 688061885004, 729198287924, 731304733003
    EAN: 0662712247342, 0688061885004, 0729198287924, 0731304733003, 4943783187345
    UNSPSC: 39121011
