Full specifications (PDF)
Protection Type:
Surge

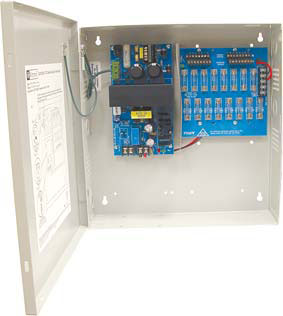

Altronix ALTV1224DC Power Device
Part Number:
ALTV1224DC
Model:
ALTV1224DC
Altronix ALTV1224DC Power Device Model Overview
The Altronix ALTV1224DC series is an advanced DC CCTV power supply solution perfect for powering your security cameras and accessories. Offering flexibility in output, it provides either 12VDC or 24VDC across multiple fused or PTC protected outputs. With options for 4 or 6 amp total continuous supply current, these power supplies ensure reliable performance for optimal camera synchronization. Designed for ease of installation, the Altronix ALTV1224DC series minimizes downtime and labor costs, making it an ideal choice for professional and DIY security installations alike.
Key features:
Specifications:
Key features:
- Multiple Output Options: Choose between 12VDC or 24VDC with up to 16 fused protected outputs.
- Robust Power Supply: ALTV1224DC delivers 4 amp supply current; ALTV1224DC2 offers 6 amp.
- Easy Installation: User-friendly design reduces installation time and costs.
- LED Indicators: AC input and DC output LED indicators for easy monitoring.
- Included Extras: Spare fuses for added convenience.
Specifications:
- Input fuse rated @ 3.5 amp/250V
- Maintains camera synchronization
- Filtered and electronically regulated outputs
- Power ON/OFF switch
- Dimensions: 13"H x 13.5"W x 3.25"D
Altronix ALTV1224DC Power Device Overview
These Altronix DC CCTV power supply is designed to power CCTV Cameras and accessories. It will provide 12VDC or 24VDC distributed via eight (8) or sixteen (16) fused or PTC protected outputs with a total of 4 amp or 6 amp total supply current.
Technical Information
Power Description
Input Voltage Type:
AC
Input Voltage:
110 V AC
Output Voltage:
- 12 V DC
- 24 V DC
Input Current:
1.45 A @ 110V
Interfaces/Ports
Plug/Connector:
On/Off Switch
Physical Characteristics
Form Factor:
Wall Mount
Height:
13.5"
Width:
13"
Depth:
3.3"
Miscellaneous
Compatibility:
CCTV Camera
Country of Origin:
United States
NDAA Compliant:
Yes
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN:
0782239930814, 0818255903041, 4703876699267
UPC:
782239930814, 818255903041
EAN:
0782239930814, 0818255903041, 4703876699267
UNSPSC:
39121004
