Full specifications (PDF)
Protection Type:
- Thermal Overload
- Short Circuit
Altronix AL624 Accessory
Part Number:
AL624
Model:
AL624 Linear

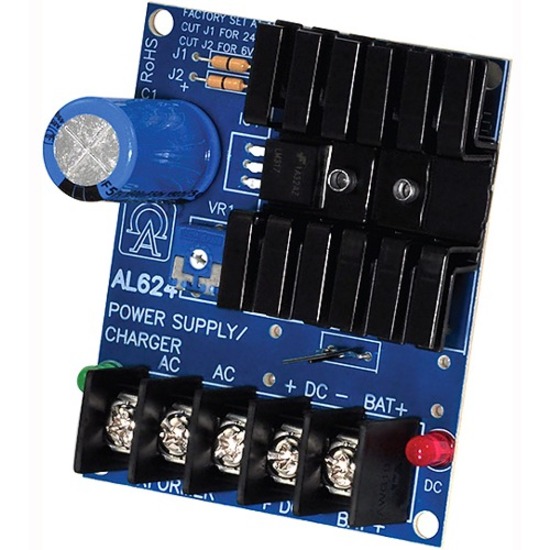

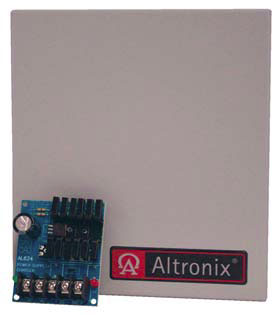

Altronix AL624 Linear Power Supply/Charger Power Device Model Overview
Model AL624 power supply/charger converts a low voltage AC input to a 1.2 amp of continuous supply current @ 6VDC or 12VDC or .75 amp of continuous supply current @ 24VDC.
Altronix AL624 Accessory Overview
These Altronix power supply/chargers convert a low voltage AC input into 6VDC, 12VDC or 24VDC output. These general purpose power supplies have a wide range of applications for access control, security and CCTV system accessories that require additional power.
Technical Information
Power Description
Number of +12V Rails:
1
Input Voltage Type:
AC
Input Voltage:
- 16 V AC
- 24 V AC
Input Voltage Range:
16 V AC - 24 V AC
Output Voltage:
- 6 V DC
- 12 V DC
- 24 V DC
Output Voltage Detail:
- 6 V DC @ 1.2 A
- 12 V DC @ 1.2 A
- 24 V DC @ 750 mA
Output Current:
- 1.20 A
- 750 mA
Physical Characteristics
Form Factor:
Wall Mount
Height:
8.5"
Width:
7.5"
Depth:
3.5"
Weight (Approximate):
3.20 oz
Miscellaneous
Package Contents:
- AL624 Proprietary Power Supply
- Battery Leads
Compatibility:
- Access Control Devices
- Security Devices
- CCTV Systems
Country of Origin:
United States
NDAA Compliant:
Yes
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN:
0013039141736, 0782239931224, 0888063742835, 4703876699236
UPC:
013039141736, 782239931224, 888063742835
EAN:
0013039141736, 0782239931224, 0888063742835, 4703876699236
UNSPSC:
39121004
Get help from a Barcoding Expert!
The Altronix AL624 Accessory is also known as
ALT-AL624
