Full specifications (PDF)
Protection Type:
- Short Circuit
- Thermal Overload
- Surge

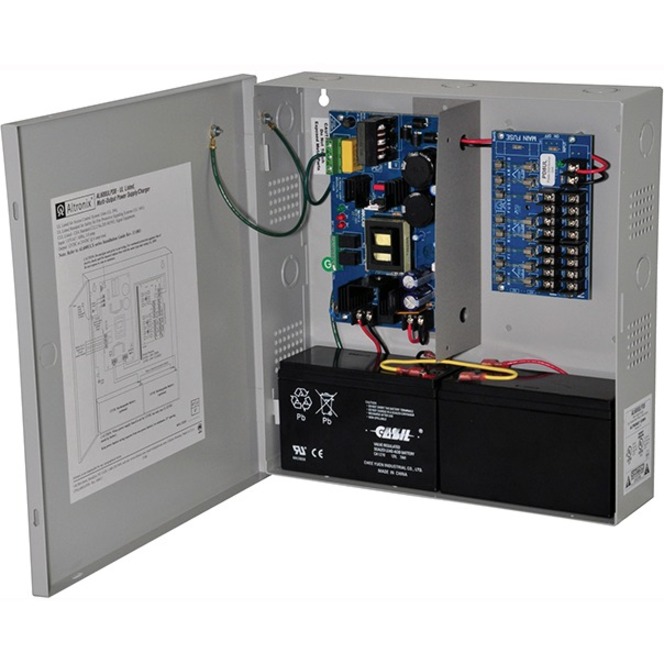

Altronix AL600ULPD8 Power Device
Part Number:
AL600ULPD8
Model:
AL600ULPD8
Altronix AL600ULPD8 Power Device Model Overview
The Altronix AL600ULPD8 Power Supply-Charger converts a 115VAC/60Hz input into eight (8) class 2-rated 12VDC or 24VDC power limited outputs. These outputs are filtered and electronically regulated. AL600ULPD8 Power Supply-Charger has short-circuit and thermal overload protection. AL600ULPD8 Power Supply-Charger automatically switches to stand-by battery when AC fails (zero voltage drop). It has got a grey enclosure. It is UL/CUL listed.
Altronix AL600ULPD8 Power Device Overview
Model AL600ULPD8 power supply/charger converts a 115VAC 60Hz input, to a 6 amp of continuous supply current @ 12VDC or 24VDC distributed via eight (8) fuse protected non power limited outputs. Model AL600ULPD8CB is a PTC protected version of this unit.
Technical Information
Power Description
Number of +12V Rails:
8
Input Voltage Type:
AC
Input Voltage:
120 V AC
Output Voltage:
- 12 V DC
- 24 V DC
Output Voltage Detail:
- 12 V DC @ 6 A
- 24 V DC @ 6 A
Input Current:
1.9 A @ 110V
Output Current:
6 A
Physical Characteristics
Form Factor:
- Wall Mount
- Enclosure
Height:
13.5"
Width:
13"
Depth:
3.3"
Weight (Approximate):
7.80 lb
Miscellaneous
Compatibility:
- Access Control Systems
- Fire Protective Signaling Systems
Country of Origin:
United States
NDAA Compliant:
Yes
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN:
0782239937042, 4703876699182
UPC:
782239937042
EAN:
0782239937042, 4703876699182
UNSPSC:
39121004
Get help from a Barcoding Expert!
The Altronix AL600ULPD8 Power Device is also known as
ALT-AL600ULPD8
