Protection Type:
- Short Circuit
- Thermal Overload
- PTC

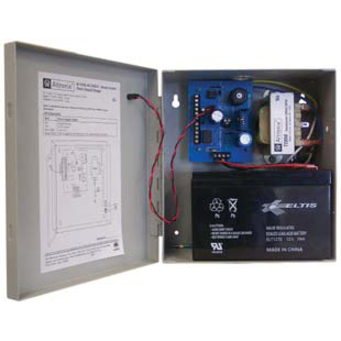

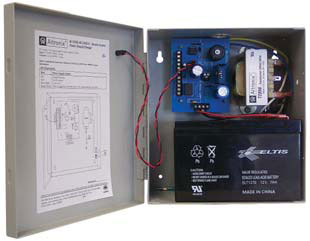

Altronix AL125ULX Power Device
Part Number:
AL125ULX
Model:
AL125ULX
Altronix AL125ULX Power Device Model Overview
The AL125ULX Power Supply-Charger is a power limited power supply/charger that will convert 115VAC 50/60Hz input into two individually PTC protected 12VDC or 24VDC outputs. It is intended for use in applications requiring UL Listing for Access Control (UL294) and applications requiring an interface with Fire Alarm Control Panels. It has a filtered and electronically regulated output. It is a built-in charger for sealed lead acid or gel type batteries. Includes power supply, transformer, cam lock and enclosure.
Altronix AL125ULX Power Device Overview
AL125UL, AL125ULX, AL125ULP, AL125ULE are Power Limited Power Supply/Chargers that will convert 115VAC 50/60Hz input, into two individually PTC protected 12VDC or 24VDC outputs (see specifications). They are intended for use in applications requiring UL Listing for Access Control (UL294) and applications requiring an interface with Fire Alarm Control Panels.
Technical Information
Power Description
Number of +12V Rails:
2
Input Voltage Type:
AC
Input Voltage:
110 V AC
Output Voltage:
- 12 V DC
- 24 V DC
Output Voltage Detail:
- 12 V DC @ 1 A
- 24 V DC @ 1 A
Input Current:
600 mA @ 110V
Output Current:
1 A
Physical Characteristics
Form Factor:
Wall Mount
Height:
13.5"
Width:
13"
Depth:
3.3"
Miscellaneous
Compatibility:
- Access Control Systems
- Fire Alarm Control Panels
Country of Origin:
United States
NDAA Compliant:
Yes
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN:
0782239936892
UPC:
782239936892
EAN:
0782239936892
UNSPSC:
39121004
