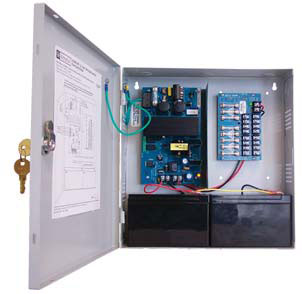

Altronix AL300ULPD4 Power Device
Altronix AL300ULPD4 -
Altronix AL300ULPD4 Power Supply-Charger multi-agency approved multi-output power supply/chargers convert a 115VAC/60Hz input to four (4) or eight (8) class 2-rated 12VDC or 24VDC power limited outputs. AL300ULPD4 Power Supply-Charger has a 2.5 amp supply current and electronically regulated outputs. Maximum charge current is .7 amp. It automatically switches over to stand-by battery when AC fails (zero voltage drop). Grey enclosure.
Full specifications (PDF)
Price Match Guarantee
Found a better price? We'll match it within 60 days of your purchase.
for Qty Discount
Add to Quote
Starting at:
$229.49
Get help from a Barcoding Expert!
Altronix AL300ULPD4 Power Device Options
-
Altronix AL300PD4220 Power Device
Altronix Multi-Output Power Supply/Charger - Wall Mount - 230 V AC Input / 12 V DC, 24 V DC
Altronix AL300ULPD4 Power Device Model Overview
The Altronix AL300ULX Series Power Supply/Charger is an essential solution for your power management needs, converting 115VAC/60Hz input to a reliable 12VDC or 24VDC output with multiple configurations to suit a diverse array of applications. This UL Listed unit is designed to provide exceptional power distribution with options ranging from single to sixteen fused outputs, ensuring a stable power supply for all connected devices. Its robust design includes built-in short circuit and thermal overload protection, automatic battery backup switchover, and supervision features to ensure maximum reliability, making it the preferred choice for security and access control systems.
Key Features:
Specifications:
Key Features:
- Model Variants: Available in single, four, eight, or sixteen fused outputs.
- Power Selection: 12VDC or 24VDC selectable output.
- Battery Backup: Automatic switch over to stand-by battery when AC power fails.
- Safety Features: Short circuit and thermal overload protection for enhanced safety.
- LED Indicators: Visual indicators for AC and DC status.
Specifications:
- Input Voltage: 115VAC / 60Hz, 1.45 amps
- Output Rating: 2.5 amps total supply current
- Output Type: Filtered and electronically regulated
- Battery Compatibility: Sealed lead acid or gel type batteries
- Agency Listings: UL listed for various applications, including burglar alarm systems and access control units
- Enclosure Dimensions: Varies by model; up to 15.5"H x 12"W x 4.5"D
