Altronix AL125UL Power Device
Altronix AL125UL -

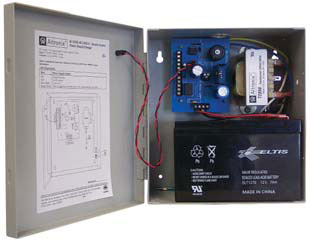

The AL125UL Power Supply-Charger is a power-limited power supply/charger that will convert 115VAC 50/60Hz input into two individually PTC-protected 12VDC or 24VDC outputs. It is intended for use in applications requiring UL Listing for Access Control (UL294) and applications requiring an interface with fire alarm control panels. It has a filtered and electronically regulated output. It is a built-in charger for sealed lead acid or gel type batteries. Includes power supply, transformer and enclosure.
Full specifications (PDF)
Price Match Guarantee
Found a better price? We'll match it within 60 days of your purchase.
for Qty Discount
Add to Quote
Starting at:
$184.03
Get help from a Barcoding Expert!
Altronix AL125UL Power Device Options
-
Altronix AL125UL Power Device
Altronix AL125UL Proprietary Power Supply - Wall Mount - 110 V AC InputIn Stock$184.03
Altronix AL125UL Power Device Model Overview
The Altronix AL125UL series Access Control Power Supply/Chargers are robust solutions tailored for Access Control applications, converting 115VAC into dual PTC protected 12VDC or 24VDC outputs. Designed to comply with UL294 listings, these systems are perfect for integrating with Fire Alarm Control Panels while ensuring reliable operation. With built-in battery backup and a user-friendly front panel, the AL125UL series guarantees continuous power even during outages, making it a vital component for security applications.
Key Features:
- Dual Power Outputs: Two individual 12VDC or 24VDC outputs with up to 1 amp supply current.
- Built-in Battery Backup: Automatically switches to stand-by battery during AC failure.
- Indicator Lights: Front panel status indicators for easy monitoring.
- Fire Alarm Interface: Supervised connections for Fire Alarm Control Panels.
Specifications:
- Input:
- AL125UL, AL125ULX - 115VAC 50/60Hz, 0.6 amp
- AL125ULP, AL125ULE - 24VAC @ 40VA
- Output:
- 12VDC/24VDC class 2 rated outputs
- 1A total supply @ 12VDC or 24VDC (AL125UL & AL125ULX)
- 1A @ 12VDC, 0.5A @ 24VDC (AL125ULP & AL125ULE)
- Dimensions:
- AL125UL, AL125ULE, AL125ULP - 8.5"H x 7.5"W x 3.5"D
- AL125ULX - 13"H x 13.5"W x 3.25"D
