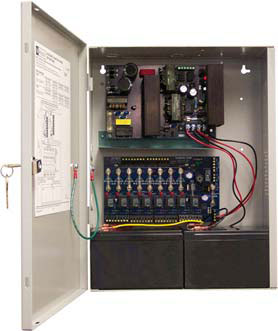

Altronix AL1024ULACM Power Device
Altronix AL1024ULACM -
The AL1024ULACM Power Supply-Charger converts an 115VAC 60Hz input into eight (8) independently controlled 24VDC Fail-Safe and/or Fail-Secure outputs with a total of 10 amp continuous supply current. Outputs are activated by an open collector sink or normally open (NO) dry trigger input from an Access Control System, Card Reader, Keypad, Push Button, PIR, etc. AL1024ULACM Power Supply-Charger will route power to a variety of access control hardware devices including Mag Locks, Electric Strikes, Magnetic Door Holders, etc. The outputs will operate in both Fail-Safe and/or Fail-Secure modes. The FACP Interface enables Emergency Egress, Alarm Monitoring, or may be used to trigger other auxiliary devices. The fire alarm disconnect feature is individually selectable for any or all of the eight (8) outputs.
Full specifications (PDF)
Price Match Guarantee
Found a better price? We'll match it within 60 days of your purchase.
for Qty Discount
Add to Quote
Starting at:
$484.66
Get help from a Barcoding Expert!
Altronix AL1024ULACM Power Device Options
-
Altronix AL1024ULACM Power Device
Altronix AL1024ULACM Proprietary Power Supply - Wall Mount - 110 V AC InputIn Stock$484.66
Altronix AL1024ULACM Power Device Model Overview
The Altronix AL1024ULACM is a state-of-the-art Power Supply/Charger designed to convert an 115VAC 60Hz input into eight independently controlled 24VDC outputs, providing a total supply current of 10 amps. It seamlessly activates various access control hardware such as mag locks and electric strikes, supporting both Fail-Safe and Fail-Secure modes. With options for a single power source or two independent sources, this unit is adaptable for different operational needs. Its built-in features also allow for emergency egress and alarm monitoring, ensuring utmost reliability and safety in access control applications.
Key features:
Specifications:
Key features:
- Eight independently controlled, fuse-protected outputs.
- Filtered and electronically regulated outputs, ensuring consistent performance.
- Fire alarm disconnect feature, individually selectable for any or all outputs.
- AC fail supervision and monitoring capabilities for enhanced safety.
- Class 2 rated power limited outputs for compliance and reliability.
Specifications:
- Power Input: 115VAC 60Hz rated @ 4.4 amp.
- Supply Current: 24VDC @ 10 amp.
- Output Ratings:
- Standard Fuses rated @ 3.5 amp (AL1024ULACM).
- PTCs rated @ 2.5 amp (AL1024ULACMCB).
- Trigger Inputs: Eight (8) normally open (NO) or open collector inputs.
- Relay Outputs: Eight (8) Fail-Safe and/or Fail-Secure.
- Dimensions: 15.5"H x 12"W x 4.5"D.
