Aiphone AX-8MV Access Control Equipment
Part Number:
AX-8MV
Model:
AX-8MV
Aiphone AX-8MV Access Control Equipment Model Overview
The Central Exchange Unit (CEU) is the pivotal component of the AX Series, integrating advanced audio and video communication systems for effective security. It seamlessly connects all master and door stations while offering programming flexibility and remote control functions. Designed for absolute reliability, the CEU supports up to 120 door stations and ensures optimal performance with features such as video output, CO line output, and access control integration. Its PC programmability allows for easy customization, making it ideal for various applications including residential, commercial, educational, and healthcare environments.
Key Features
- Comprehensive Integration: Supports up to 120 door stations and 8 master stations using CAT-5e cabling.
- Versatile Functionality: Programmable dry contacts for door release and remote control.
- Clear Communication: Audio and video master stations with hands-free options.
- Intuitive Software: Simplifies setup and customization options for system features.
- Robust Design: Durable construction suitable for various environments.
Specifications
- Power Source: 24V DC, requires two PS-2420UL (110V AC) per system
- Wiring Distance: Door station to CEU: 980'
- Video Output: Composite video output (BNC)
- Data Output: RS-232 serial output for custom programming
- Dimensions: Rack mountable (2U)
- Intercom Types: Audio only and audio/video options available
- Communication Modes: Hands-free or push-to-talk (PTT)
Aiphone AX-8MV Access Control Equipment Overview

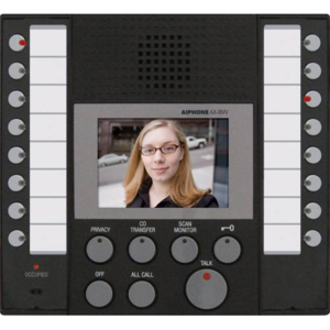

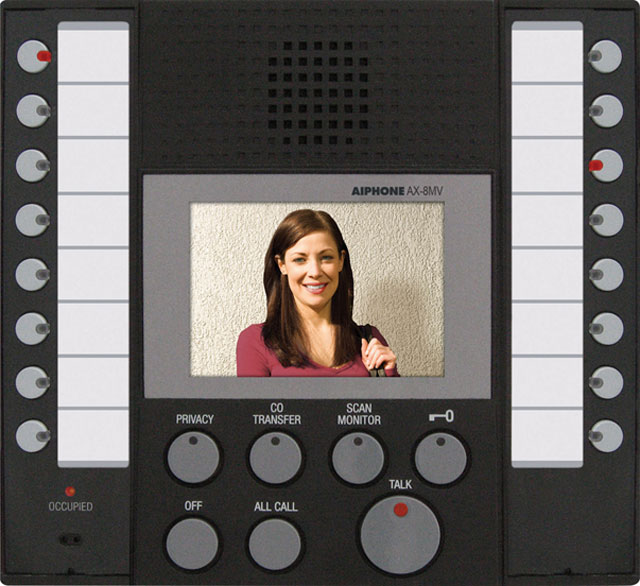

The AX-8MV Master Station is the centerpiece of the AX Integrated Audio & Video Security system.
Each AX-8MV master station can initiate and answer calls from up to 7 additional master stations and up to 8 door or sub stations. The master can be expanded with AX-16SW add-on selectors for a maximum capacity of 120 door / sub stations. Its streamline design is mountable on a wall or desk.
Technical Information
Display & Graphics
Screen Size:
3.5"
Display Screen Type:
LCD
Power Description
Input Voltage:
24 V DC
Physical Characteristics
Product Color:
Black
Height:
6.9"
Width:
7.6"
Depth:
1.9"
Weight (Approximate):
1.21 lb
Miscellaneous
Package Contents:
- AX-8MV Video Door Phone
- Metal Bracket
Application/Usage:
Door Entry
Additional Information:
- Call Tone: Tremolo ring tone & blinking LED
- Communication: Open voice hands-free (VOX or Push-to-Talk)
- Scanning Lines: 525 lines
- Video Output: NTSC Standard 1Vpp (0.7-1.4Vpp)
- Headset Jack: 3.5mm mic and speaker jacks
- Calling Capacity: Up to 7 additional master stations Up to 120 door / sub stations
- Mounting: Desk with flip-up stands, or wall mount with provided metal bracket
- Wall mount box:2-gang electrical box or ring
- Wiring: CAT-5e homerun to CEU
- Wiring Connection:RJ45 jack
- Housing: ABS Resin
Country of Origin:
Japan
Item Numbers
GTIN:
0013538387895, 0053926347209, 0790143415808, 4968249415800
UPC:
013538387895, 053926347209, 790143415808
EAN:
0013538387895, 0053926347209, 0790143415808, 4968249415800
UNSPSC:
43191513
