Full specifications (PDF)
Application/Usage:
Data Networking
Adtran 1180435L1 Data Networking
Part Number:
1180435L1
Model:
Total Access 1500

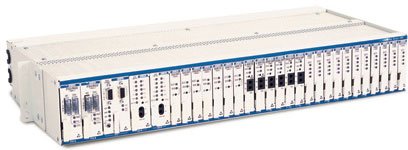

Adtran Total Access 1500 Accessory Model Overview
The Total Access 1500 Narrowband Multiservice Access Platform is designed for carriers seeking efficient TDM network access solutions. Compact and versatile, this platform integrates multiple functionalities within a sleek, 2U-high chassis, making it ideal for tight spaces in Central Offices (COs) or Remote Terminals (RTs). It supports a variety of services like POTS, special services, and data applications, enabling service providers to meet diverse customer needs with ease and reliability. With a 10-year warranty and NEBS Level 3 compliance, the Total Access 1500 ensures unmatched reliability and long-term performance.
Key Features
Specifications
Key Features
- Up to 96 two-wire interfaces
- Compact 2U design
- Fully redundant commons
- Five times the density of competing platforms
- SNMP management and TL1 interface support
- Integrated testing capabilities
- Industry-leading 10-year warranty
Specifications
- Mechanical:
- Dimensions: 3.5 in. H X 23 in. W X 11 in. D
- Weight: 12 lbs. (chassis only)
- Network Interfaces:
- Transport: DS1
- Capacity: 1 to 4 T1 plus 1 protect T1
- Line Rate: 1.544 Mbps +/- 75 bps
- Physical interface: Wire wrap
- Framing: D4 (SF)/ESF, TR-08
- Input signal: 0 to -36 dB
- Environmental:
- Operating temperature: -40°C to +65°C
- Storage temperature: -20° to +70° C
- Relative humidity: Up to 95 percent, non-condensing
- Electrical:
- DC Power: -40 to +56 VDC
- Connection: Screw terminals (A and B feed)
- Regulatory Standards:
- NEBS Level 3
- UL 1950
- FCC Part 15 (Class A) and Part 68
Adtran 1180435L1 Data Networking Overview
The Quad RS-232 Module is intended for use in the Adtran Total Access 1500 channel bank. The channel unit provides for up to four RS232 Data Communications Equipment (DCE) interfaces from a single 56/64 kbps Digital Data Service (DDS) Circuit. One communications link is shared by up to four Data Termination Equipment (DTE) devices by enabling each DTE to use the path exclusively at regular intervals. Each of the four DTE devices is allowed a portion of the dedicated circuit, not exceeding the allowable bandwidth of 60 kbps.
Technical Information
Interfaces/Ports
Total Number of Ports:
5
Connector Type:
- DB-25
- DB-50
Interfaces/Ports Details:
- 1 x DB-50
- 4 x DB-25 RS-232 Serial
Media & Performance
Maximum Data Transfer Rate:
64 kbit/s
Physical Characteristics
Height:
2.3"
Width:
0.7"
Depth:
9.1"
Miscellaneous
Package Contents:
- Total Access 1500 Quad RS-232 Module
- Total Access 1500 Quad RS-232 Module Installation and Maintenance Practice
Additional Information:
- Asynchronous or synchronous subrate multiplexer
- Port 1 supports rates up to 64 kbps
- Ports 2-4 support rates up to 38.4 kbps
Compatibility:
Adtran Total Access 1500 channel bank
Warranty
Limited Warranty:
5 Year
Item Numbers
GTIN:
0607565022685
UPC:
607565022685
EAN:
0607565022685
UNSPSC:
43201404
