Full specifications (PDF)
Interfaces/Ports Details:
DDS
Adtran 1180203L4 Data Networking
Part Number:
1180203L4
Model:
Total Access 1500

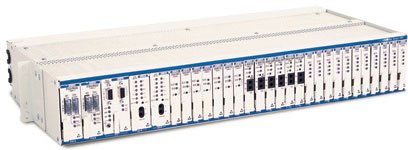

Adtran Total Access 1500 Accessory Model Overview
The Total Access 1500 Narrowband Multiservice Access Platform is designed for carriers seeking efficient TDM network access solutions. Compact and versatile, this platform integrates multiple functionalities within a sleek, 2U-high chassis, making it ideal for tight spaces in Central Offices (COs) or Remote Terminals (RTs). It supports a variety of services like POTS, special services, and data applications, enabling service providers to meet diverse customer needs with ease and reliability. With a 10-year warranty and NEBS Level 3 compliance, the Total Access 1500 ensures unmatched reliability and long-term performance.
Key Features
Specifications
Key Features
- Up to 96 two-wire interfaces
- Compact 2U design
- Fully redundant commons
- Five times the density of competing platforms
- SNMP management and TL1 interface support
- Integrated testing capabilities
- Industry-leading 10-year warranty
Specifications
- Mechanical:
- Dimensions: 3.5 in. H X 23 in. W X 11 in. D
- Weight: 12 lbs. (chassis only)
- Network Interfaces:
- Transport: DS1
- Capacity: 1 to 4 T1 plus 1 protect T1
- Line Rate: 1.544 Mbps +/- 75 bps
- Physical interface: Wire wrap
- Framing: D4 (SF)/ESF, TR-08
- Input signal: 0 to -36 dB
- Environmental:
- Operating temperature: -40°C to +65°C
- Storage temperature: -20° to +70° C
- Relative humidity: Up to 95 percent, non-condensing
- Electrical:
- DC Power: -40 to +56 VDC
- Connection: Screw terminals (A and B feed)
- Regulatory Standards:
- NEBS Level 3
- UL 1950
- FCC Part 15 (Class A) and Part 68
Interfaces/Ports
Media & Performance
Maximum Data Transfer Rate:
64 kbit/s
Physical Characteristics
Height:
3.1"
Width:
0.6"
Depth:
10.1"
Weight (Approximate):
1 lb
Miscellaneous
Additional Information:
- The data port can be optioned to operate as a DS0 DP or as a Clear Channel Unit (CCU)
- Switched 56 Tandem functionality
- Logic level bantam jacks
- Bantam jack channel select pushbutton
- Remotely provisionable via Digital System-6
- Standard Warranty: 10 Year Repair/Replace
Compatibility:
Total Access 1500 integrated access Devices
Warranty
Limited Warranty:
10 Year
Item Numbers
UNSPSC:
43201404
