Application/Usage:
Data Networking

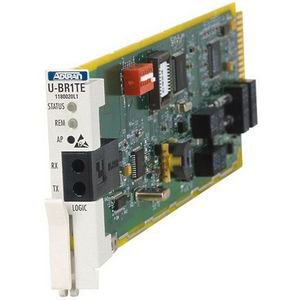

Adtran 1180020L1 Accessory
Part Number:
1180020L1
Model:
Total Access 1500
Adtran Total Access 1500 Accessory Model Overview
The Total Access 1500 Narrowband Multiservice Access Platform is designed for carriers seeking efficient TDM network access solutions. Compact and versatile, this platform integrates multiple functionalities within a sleek, 2U-high chassis, making it ideal for tight spaces in Central Offices (COs) or Remote Terminals (RTs). It supports a variety of services like POTS, special services, and data applications, enabling service providers to meet diverse customer needs with ease and reliability. With a 10-year warranty and NEBS Level 3 compliance, the Total Access 1500 ensures unmatched reliability and long-term performance.
Key Features
Specifications
Key Features
- Up to 96 two-wire interfaces
- Compact 2U design
- Fully redundant commons
- Five times the density of competing platforms
- SNMP management and TL1 interface support
- Integrated testing capabilities
- Industry-leading 10-year warranty
Specifications
- Mechanical:
- Dimensions: 3.5 in. H X 23 in. W X 11 in. D
- Weight: 12 lbs. (chassis only)
- Network Interfaces:
- Transport: DS1
- Capacity: 1 to 4 T1 plus 1 protect T1
- Line Rate: 1.544 Mbps +/- 75 bps
- Physical interface: Wire wrap
- Framing: D4 (SF)/ESF, TR-08
- Input signal: 0 to -36 dB
- Environmental:
- Operating temperature: -40°C to +65°C
- Storage temperature: -20° to +70° C
- Relative humidity: Up to 95 percent, non-condensing
- Electrical:
- DC Power: -40 to +56 VDC
- Connection: Screw terminals (A and B feed)
- Regulatory Standards:
- NEBS Level 3
- UL 1950
- FCC Part 15 (Class A) and Part 68
Technical Information
Interfaces/Ports
Total Number of Ports:
1
Connector Type:
RJ-45
Interfaces/Ports Details:
1 x RJ-45 ISDN BRI (U)
Media & Performance
Media Type Supported:
Twisted Pair
Maximum Data Transfer Rate:
64 kbit/s
Miscellaneous
Compatibility:
- Total Access 750
- Total Access 850
- Total Access 1500
Item Numbers
GTIN:
0607565005572
UPC:
607565005572
EAN:
0607565005572
UNSPSC:
43201404
