Full specifications (PDF)
Application/Usage:
Data Networking
Adtran 1180009L1 Data Networking
Part Number:
1180009L1
Model:
Total Access 1500

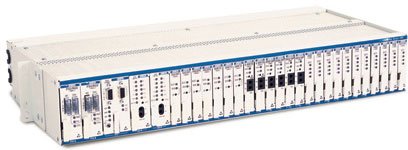

Adtran Total Access 1500 Accessory Model Overview
The Total Access 1500 Narrowband Multiservice Access Platform is designed for carriers seeking efficient TDM network access solutions. Compact and versatile, this platform integrates multiple functionalities within a sleek, 2U-high chassis, making it ideal for tight spaces in Central Offices (COs) or Remote Terminals (RTs). It supports a variety of services like POTS, special services, and data applications, enabling service providers to meet diverse customer needs with ease and reliability. With a 10-year warranty and NEBS Level 3 compliance, the Total Access 1500 ensures unmatched reliability and long-term performance.
Key Features
Specifications
Key Features
- Up to 96 two-wire interfaces
- Compact 2U design
- Fully redundant commons
- Five times the density of competing platforms
- SNMP management and TL1 interface support
- Integrated testing capabilities
- Industry-leading 10-year warranty
Specifications
- Mechanical:
- Dimensions: 3.5 in. H X 23 in. W X 11 in. D
- Weight: 12 lbs. (chassis only)
- Network Interfaces:
- Transport: DS1
- Capacity: 1 to 4 T1 plus 1 protect T1
- Line Rate: 1.544 Mbps +/- 75 bps
- Physical interface: Wire wrap
- Framing: D4 (SF)/ESF, TR-08
- Input signal: 0 to -36 dB
- Environmental:
- Operating temperature: -40°C to +65°C
- Storage temperature: -20° to +70° C
- Relative humidity: Up to 95 percent, non-condensing
- Electrical:
- DC Power: -40 to +56 VDC
- Connection: Screw terminals (A and B feed)
- Regulatory Standards:
- NEBS Level 3
- UL 1950
- FCC Part 15 (Class A) and Part 68
Adtran 1180009L1 Data Networking Overview
The Adtran Total Access 1500 Dual T1 Line Interface Unit (LIU) is a common module plug-in unit that connects the channel bank to a T1 line at the DSX-1 level. All data formatting and line encoding, as well as backplane timing and control, are performed by the ACT LIU. The LIU can be provisioned locally with on-board switches, remotely through the SCU craft interface, or remotely through network management.
Technical Information
Interfaces/Ports
Total Number of Ports:
2
Interfaces/Ports Details:
2 x T1
Media & Performance
Maximum Data Transfer Rate:
1.544
Physical Characteristics
Height:
3"
Width:
0.9"
Depth:
9.7"
Weight (Approximate):
2 lb
Miscellaneous
Additional Information:
- AMI or B8ZS line code formats
- Local and remote loopbacks
- Front panel Bantam jacks for monitoring T1s
- Front panel indicators showing the status of the unit
Compatibility:
Total Access 1500 Chassis
Item Numbers
GTIN:
0607565004797
UPC:
607565004797
EAN:
0607565004797
UNSPSC:
43222628
